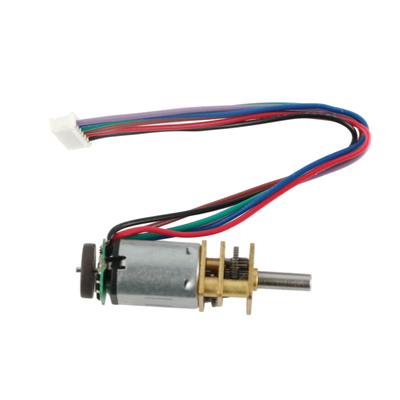

6v 12v gear reduction motor 12mm N10 N20 N30 Gear Motor with 3PPR Encoder for robotics small automation and electronic projects

6v 12v gear reduction motor 12mm N10 N20 N30 Gear Motor with 3PPR Encoder for robotics small automation and electronic projects

Brand Name:	XINHE MOTOR
Model Number:	N20L-EN
MOQ:	1PC
Price:	USD6/PC
Payment Terms:	T/T
Supply Ability:	50000PCS/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE RoHS

Material:

Steel,Plastic,POM,Brass,Aluminum

Shape:

Spur,Plate,Bar,Tube,Rod

Product Name:

Spur Gear,OEM Aluminum Brass Stainless Steel Small Gear Parts/spur Brass Gear,China Factory Precision Steel Material Spur Shape Gear,OEM High Precision CNC Machining Aluminum Spur Gear,Customized Various Metal Gear

Application:

Match With The Gear Rack,Mines,Machine,Ice Cream Machine,electronic

Surface Treatment:

Quenching,Clean Or Customized,polishing,Zinc Plated,Case Hardened

Color:

Black,green,white,blue,Any Color

Size:

Customer's Drawing,Customized Accepted,As Drawing Design,large Gear Huge Gear Big Gear,Customized Size

Processing:

Hobbing,turning,CNC Machining,Powder Metallurgy Sintering,grinding

Service:

OEM ODM,OEM/ODM,customized,Weekly Project Follow-up Report

Pressure Angle:

20 Degree,Custom Designed,20 Degrees / 14.5 Degrees Spur Gear,20°

Module:

As Drawing,0.2~3.0 Customized,m0.5-m20 Spur Gear,Accepted,according To Drawing

Process:

Cnc Milling,CNC Machining,etc,Injection Molding,Casting+Heat Treatment+Machining

Name:

Custom Sizes Carbon Steel Spur Gear,Supply High Precision Metal Spur Gear,High Precision General Motor Gear,Aluminum Spur Gear

Tolerance:

0.05mm,according To Drawing

Type:

Spur Gear,worm Gear,Power Transmission Parts,bevel Gear,Straight Teeth

Density:

6.2 - 7.1 G/cm3,1.6g/cm3,0.93-0.96g/cm3

Usage:

Large Gear,for Cnc Machine,Construction Hoist

Packaging Details:

carton

Supply Ability:

50000PCS/month

Product Description

6V 12mm N20 LP Lower Power Micro Brushed DC Metal Gear Motor with Stainless Steel Gears with 3ppr encoder

N20 brushed DC metal gear motors with stainless steel gears available in a wide range of gear ratios for electronic lock applications and precision machinery.

Technical Features

Low Power version with 0.36A stall current
Available with 12CPR encoder
Optional back shaft configuration
Choice of metal brush or carbon brush

FOR EXAMPLE: N20H100 (6V 100:1 TEST CURVE)

6v 12v gear reduction motor 12mm N10 N20 N30 Gear Motor with 3PPR Encoder for robotics small automation and electronic projects 0

Technical Parameters

Model	Voltage (VDC)	No Load Speed (rpm)	No Load Current (mA)	Stall Torque (kg.cm)	Gear Ratio
N20L5-EN	6V/12V	2500 rpm	30/15mA	0.05kg.cm	5:1
N20L10-EN	6V/12V	1300 rpm	30/15mA	0.1 kg.cm	10:1
N20L20-EN	6V/12V	650 rpm	30/15mA	0.2 kg.cm	20:1
N20L30-EN	6V/12V	440 rpm	30/15mA	0.4 kg.cm	30:1
N20L50-EN	6V/12V	250 rpm	30/15mA	0.5 kg.cm	50:1
N20L75-EN	6V/12V	170 rpm	30/15mA	0.8 kg.cm	75:1
N20L100-EN	6V/12V	120 rpm	30/15mA	1.0 kg.cm	100:1
N20L150-EN	6V/12V	85 rpm	30/15mA	1.5 kg.cm	150:1
N20L210-EN	6V/12V	60 rpm	30/15mA	2.0 kg.cm	210:1
N20L250-EN	6V/12V	50 rpm	30/15mA	2.4 kg.cm	250:1
N20L298-EN	6V/12V	45 rpm	30/15mA	2.8 kg.cm	298:1
N20L380-EN	6V/12V	35 rpm	30/15mA	3.5 kg.cm	380:1
N20L1000-EN	6V/12V	14 rpm	30/15mA	5.0 kg.cm	1000:1

Product Specifications

Speed (RPM)	3~6000 RPM
Continuous Current (A)	0.4A MAX.
Efficiency	IE 2
Warranty	3 months - 1 year
Place of Origin	Guangdong, China
Brand Name	XINHE MOTOR
Model Number	N20L-EN
Use	BOAT, Car, Electric Bicycle, FAN, Home Appliance
Type	GEAR MOTOR
Stall Torque	12kg.cm max.
Construction	Permanent Magnet
Commutation	Brush
Protect Feature	Drip-proof
High Torque	1600mA
Middle Torque	700mA
Low Torque	360mA
Gear Rate	5:1 TO 1000:1
Long Life	300 HOURS
Gear Material	Powder Metallurgy
Encoder	12CPR
Bracket	Copper
Noise	Less than 20dB
Certification	RoHS, CE

Product Drawings

Application Areas

This type of gearbox motor is mainly used in electronic locks, robots, cameras and small machinery.

Common Application Scenarios

• Intelligent door locks, electronic lock bodies

• Intelligent curtains, electric curtain tracks

• Smart toilet, automatic bathroom lid closing

• Shared charging stations, automatic devices

• Electric toothbrushes, beauty devices

• Camera pan-tilt, auto-focus mechanisms

• Robots, small mechanical arms

• Automotive electronics: mirrors, seat adjustment

• Smart Home: window openers, pet feeders

• Security equipment: surveillance cameras

• Financial equipment: printers, currency counters

• Electronic toys, remote-controlled vehicles

• Medical equipment: pumps, analyzers

• Office equipment: printers, scanners

• Electronic devices

• Intelligence development robot, intelligent toy

Our Services

ODM & OEM Services
Gearbox design and development
Related technology support
Custom packaging & shipping solutions

Packaging Details

Motors are packed in nylon first, then carton, and reinforced with wooden case for outer packing. Custom packaging available according to client requirements.

Shipping Details

Samples shipped within 10 days. Batch order lead time varies according to order quantity and specifications.

Factory Introduction

SHENZHEN XINHE MOTOR Co., Ltd, located in Shenzhen city, is a specialized factory with over 16 years of experience producing AC/DC motors for various applications including kitchen appliances, air flow products, air conditioners, water heaters, pumps, power tools, robots, 3D printers, medical products, smart wear, electrical toys, and household appliances.

Our management philosophy emphasizes humanistic values and supreme (good faith), with a quality consciousness focused on striving for perfection. We have gathered a team of specialists in engineering, manufacturing, quality control, production management and technology development.

From our powerful DC brushed and brushless motors, our experienced engineers and extensive application expertise make us a valued partner for project development and production with customer-specific motion solutions.

Our company manufactures, develops, designs and markets electronic products sold successfully in more than 20 countries worldwide. We offer complete professional solutions including superior customer service, reliable high-quality products, innovative design, wide product range, competitive prices, and convenient ordering quantities.

We are in full compliance with EU & America restrictions and regulations: CE standards, RoHS, child safety, environment safety and social responsibility. Our company comprehensively promotes ISO9001:2001 management systems and supplies motors to many famous worldwide companies with different applications in Europe, America, Middle East, East Asia, and South America markets.

Testing and Experimental Equipment

Frequently Asked Questions

Q1. What about the payment way?

A1. By TT at sight or trade assurance. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.

Q2. How long is the guarantee?

A2. We offer you high quality motors with 12 months guarantee and reply you as soon as possible within 5 hours.

Q3. If the motor some parts is broken one day, how can we get help from you?

A3. We will send you spare parts free of charge if they are in warranty, not including easy-broken parts. For easy-broken parts, we will only charge a cost fee.

Q4. How does your factory do regarding quality control?

A4. We have CE certificate and we have a special QC department in charge of products' quality. If you also need other certificates, we also can help to apply.

Q5. What is your packaging?

A5. Our conventional packaging is: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the motor on the wooden bracket.

Q6. How can we check the motor before delivery?

A6. We can provide online checking when testing the motor on site. We will take and prepare detailed testing videos for your checking before the delivery. We accept third-party testing and will provide detailed testing reports.
