products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Worm gear motor
Created with Pixso.

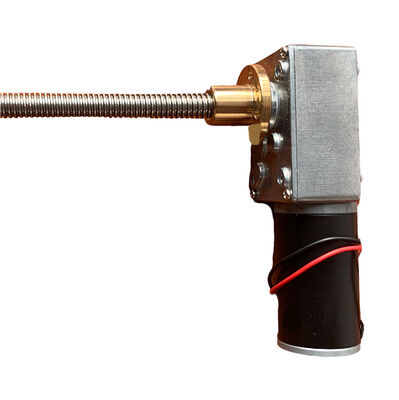

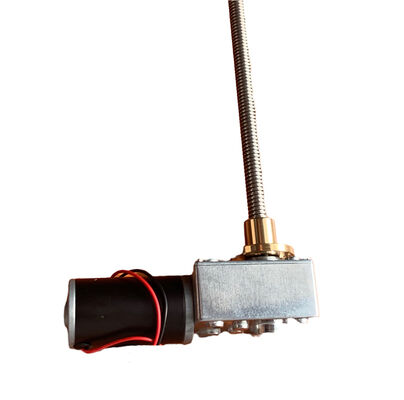

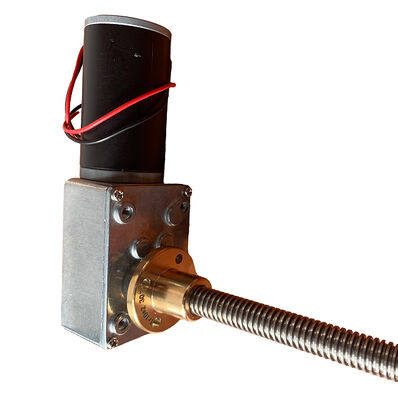

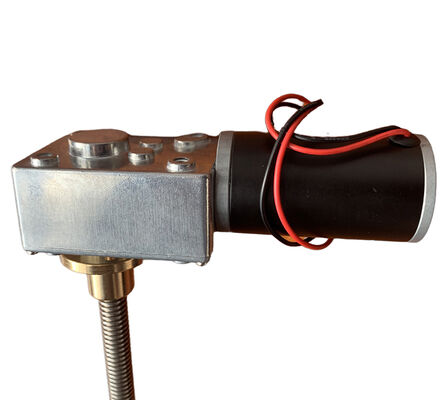

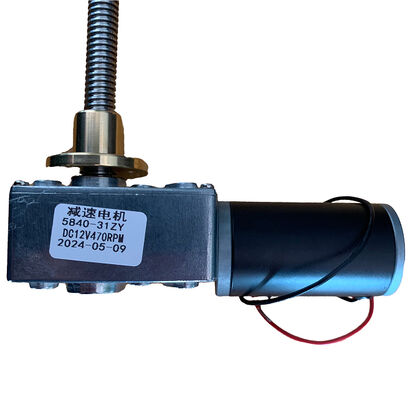

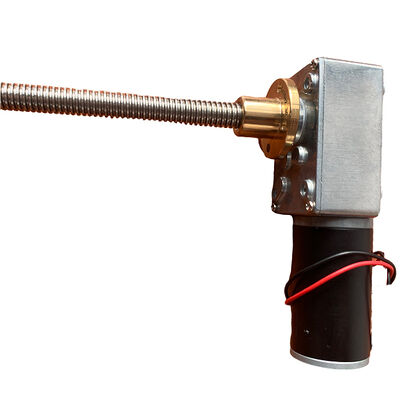

90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder

90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder

90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder

Brand Name: XINHEMOTOR
Model Number: 5840-31
MOQ: 2 pieces
Price: $9.60-10.37 / piece
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
ROHS
Continuous Current(A):
1.6A
Efficiency:
IE 1
Speed(RPM):
80RPM, Customized
Commutation:
Brush
Construction:
Permanent Magnet
Frame:
31mm
Motor Mounting Type:
Panel Mount
Protect Feature:
Explosion-proof, Drip-proof
Rated Power:
10 W
Speed Rpm:
80 RPM
Torque:
70KG.CM MAX, Customized
Type:
Gear Motor
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Boat, Car, Electric Bicycle, Fan, Home Appliance
Warranty:
3 Months ~ 1 Year
Keywords:
12/24 Volt Worm Gear Motor
Diameter:
31mm
Encoder:
With Or Without 48CPR
Voltage(V):
12VDC To 48VDC
Gear Types:
Metal Worm Gears
Product Description
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 0
Product Parameter
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 2
Model
Voltage
No load speed
Noload current
Stall torque
 Gear ratio

Unit: VDC
Unit: rpm
Unit: mA
Unit: kg.cm

5840-31-17
24V
470rpm
350mA
4.4 kg.cm
17:1
5840-31-100
24V
80 rpm
350mA
25 kg.cm
100:1
5840-31-200
24V
40 rpm
350mA
51 kg.cm
200:1
5840-31-670
24V
12 rpm
350mA
70 kg.cm
670:1
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 4
Product Name
Dc Worm Gear Drive Motor
Gear material
Stainless steel
Noise
Low Noise Level
Certification
CE/RoHS
Port Shipment
ShenZhen
Ship Date
5-7days
Other Questions
Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions
Products Show
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 6
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 8
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 10
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 12
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 14
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 16
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 18
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 20
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 22
Related Products
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 24
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 26
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 28
Company Profile
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 30
Our company is located in the center of Shenzhen City. We are a specialized factory that produces ac/dc motor, gear motor, brushless motor, vacuum cleaner motor, stepper motor. Our products are applied to various kinds of devices, like kitchen appliances, air flow products, air conditioners, water heaters, water & induction pumps, power tools and electrical toys as well as household appliances.In line with the management idea of "humanist, the good faith is supreme" and the quality consciousness of "strives for perfection", we have gathered a team of specialists for engineering, manufacture, quality control, production management and technology development.Our company comprehensively complies with ISO9001:2001 management systems. We are supplying our motors to many famous worldwide companies of top brands with different applications in Europe, the Middle East, East Asia and South America.
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 32
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 34
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 36
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 38
Our Certification
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 40
Customer Praise
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 42
Packaging And Shipping
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 44
FAQ
90 Degree Output Shaft 5840-31 24V, No-load 80 RPM, 100:1, TR8*8 (lead 8, Pitch 2), Equipped with Copper Nuts with Encoder 46
1.Q: Are you trading company or manufacturer? A: We're manufacturer， We specialize in micro ac/dc motor and dc gear motor for more than 11 years. 2.Q: What is the payment term for a new customer? A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. 3. Q: what should I provide when I choose gearbox/speed reducer? A: 1) load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation 4.Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. 5.Q: What's your lead time? A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
