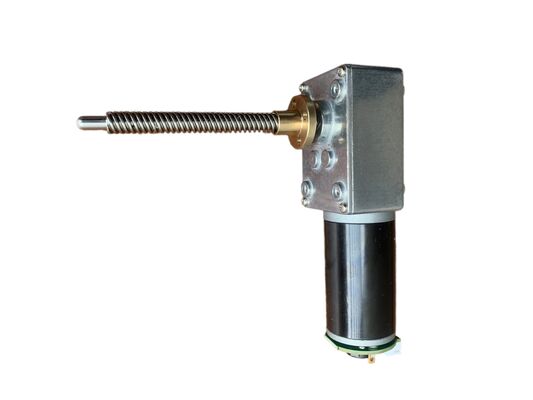

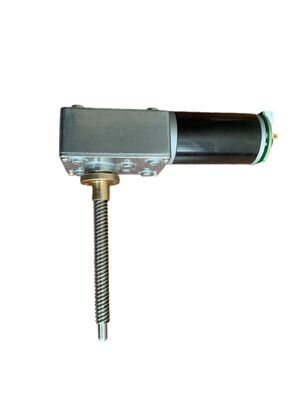

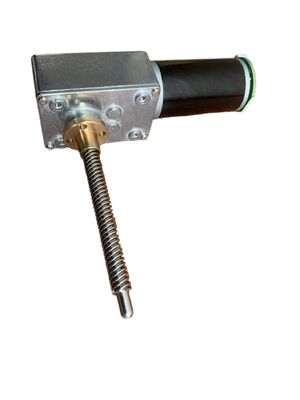

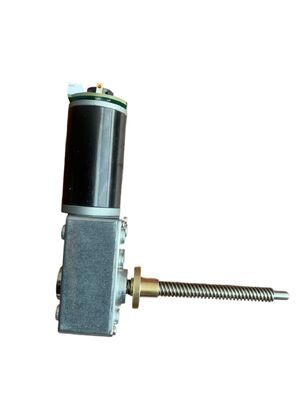

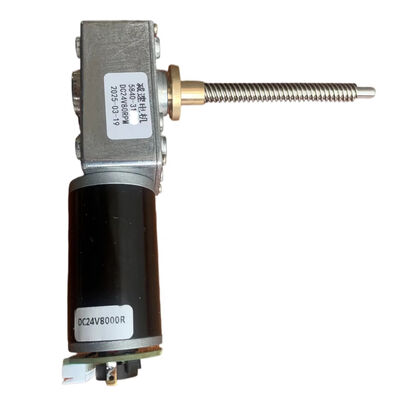

12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR

12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR

12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR

Brand Name: XINHEMOTOR
Model Number: 5840-31
MOQ: 2 pieces
Price: $16-30 / piece
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
ROHS
Continuous Current(A):
1.6A
Efficiency:
IE 2
Speed(RPM):
10~500RPM, Customized
Commutation:
Brush
Construction:
Permanent Magnet
Frame:
32mm(1.26in)
Motor Mounting Type:
Foot Mount
Protect Feature:
Explosion-proof, Drip-proof
Rated Power:
15w
Speed Rpm:
40RPM
Torque:
70KG.CM MAX, Customized
Type:
Gear Motor
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home, Boat, Car, Electric Bicycle, Fan, Home Appliance
Warranty:
3 Months ~ 1 Year
Keywords:
12/24 Volt Worm Gear Motor
Diameter:
31mm
Encoder:
With Or Without 48CPR
Voltage(V):
12VDC To 48VDC
Gear Types:
Metal Worm Gears
Product Description
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 0
Product Parameter
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 2
Model
Voltage
No load speed
Noload current
Stall torque
 Gear ratio

Unit: VDC
Unit: rpm
Unit: mA
Unit: kg.cm

5840-31-17
24V
470rpm
350mA
4.4 kg.cm
17:1
5840-31-100
24V
80 rpm
350mA
25 kg.cm
100:1
5840-31-200
24V
40 rpm
350mA
51 kg.cm
200:1
5840-31-670
24V
12 rpm
350mA
70 kg.cm
670:1
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 4
Product Name
Dc Worm Gear Drive Motor
Gear material
Stainless steel
Noise
Low Noise Level
Certification
CE/RoHS
Port Shipment
ShenZhen
Ship Date
5-7days
Other Questions
Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions
Products Show
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 6
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 8
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 10
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 12
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 14
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 16
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 18
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 20
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 22
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 24
Related Products
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 26
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 28
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 30
Company Profile
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 32
Our company is located in the center of Shenzhen City. We are a specialized factory that produces ac/dc motor, gear motor, brushless motor, vacuum cleaner motor, stepper motor. Our products are applied to various kinds of devices, like kitchen appliances, air flow products, air conditioners, water heaters, water & induction pumps, power tools and electrical toys as well as household appliances.In line with the management idea of "humanist, the good faith is supreme" and the quality consciousness of "strives for perfection", we have gathered a team of specialists for engineering, manufacture, quality control, production management and technology development.Our company comprehensively complies with ISO9001:2001 management systems. We are supplying our motors to many famous worldwide companies of top brands with different applications in Europe, the Middle East, East Asia and South America.
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 34
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 36
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 38
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 40
Our Certification
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 42
Customer Praise
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 44
Packaging And Shipping
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 46
FAQ
12V DC 5840-31 Worm Gear Motor with Permanent Magnet Encoder & M8 Lead Screw Drive 48 CPR 48
1.Q: Are you trading company or manufacturer? A: We're manufacturer， We specialize in micro ac/dc motor and dc gear motor for more than 11 years. 2.Q: What is the payment term for a new customer? A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. 3. Q: what should I provide when I choose gearbox/speed reducer? A: 1) load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation 4.Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. 5.Q: What's your lead time? A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
