24V 500W 350RPM Brushed PMDC Motor High Torque Low Noise Long Lifespan for Medical Wheelchair Light Conveyor

24V 500W 350RPM Brushed PMDC Motor High Torque Low Noise Long Lifespan for Medical Wheelchair Light Conveyor

Brand Name:	XINHE MOTOR
Model Number:	XH-D83
MOQ:	1 pieces
Price:	$45-200 / piece
Payment Terms:	T/T
Supply Ability:	3000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE ROHS

Rated Voltage:

24V/36V/48V/72V/120VDC

Rated Power:

500W

Speed Range:

350~3200rpm

Max Torque:

12.6N.m

Frame Size:

83mm

Noise Level:

<45dB

Color:

Customer's Request

Rotor Material:

Rare Earth

Mountingtype:

Flange Mount

Speed:

3000 RPM

Gearbox Type:

WORM Gear Box

Noise:

55dB

Frame:

126mm(4.96in)

Motortype:

Brushless DC Motor

Motor Mounting Type:

Flange Mount

Size:

Compact

Commutation:

Brush

Powerrating:

5000W

Efficiency:

90%

Motor Type:

Brushl Motor

Operatingtemperaturerange:

-20°C To 80°C

Packaging Details:

Carton packaging

Supply Ability:

3000pcs/month

Product Description

24V 500W 350RPM Brushed PMDC Motor

High torque, low noise permanent magnet DC motor designed for medical wheelchairs, light conveyors, and various industrial applications.

Product Series Overview

24V 500W 350RPM - Best for: Light-duty conveyors, medical mobility, small hoists, agricultural feeders

36V 800W 500RPM - Best for: Floor scrubbers, pallet trucks, gate operators, packaging machines

48V 1000W 800RPM - Best for: AGV robots, material handling, electric forklift auxiliary, industrial pumps

48V 1200W 1200RPM - Best for: Electric tricycles, industrial blowers, textile machinery, woodworking tools

72V 1000W 1500RPM - Best for: Electric scooters, marine winches, heavy door drives, mining small equipment

72V 1200W 2000RPM - Best for: High-speed industrial tools, vehicle traction, large HVAC fans, hydraulic units

Key Features

Rare-earth permanent magnet rotor structure with large starting torque and low starting current
Compact size, lightweight design with high efficiency
Excellent speed regulation performance with wide efficient operating range
Permanent magnet structure eliminates carbon brushes, ensuring simple maintenance-free operation
Capable of frequent start-stop cycles and continuous operation under rated load
Compatible dimensions with Y2 series AC asynchronous motors for easy replacement

Performance Characteristics

Overload Capacity: Handles short-term power overload of 1.5 times, torque overload of 3 times, and continuous operation under rated load.

Operating Environment: Altitude below 4000 meters, air humidity ≤90% RH, environmental temperature range -25℃ to +60℃.

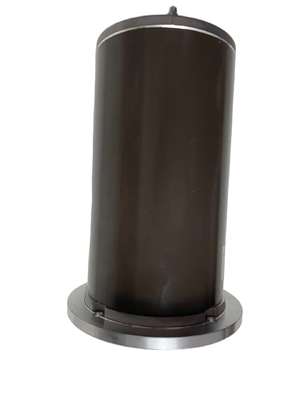

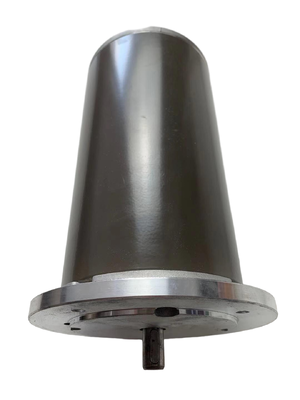

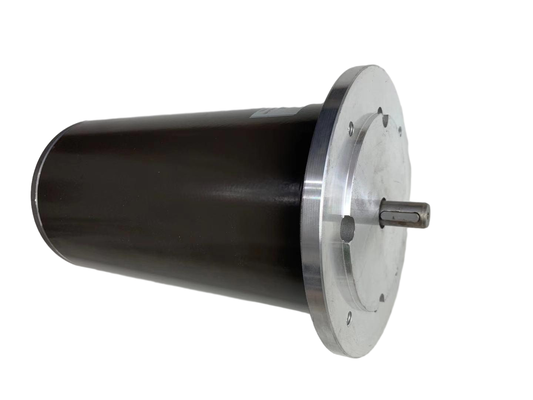

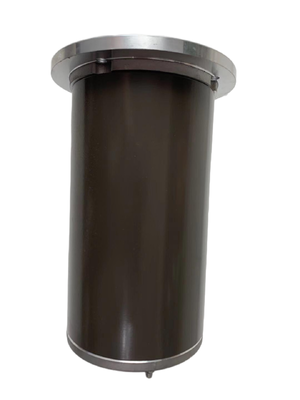

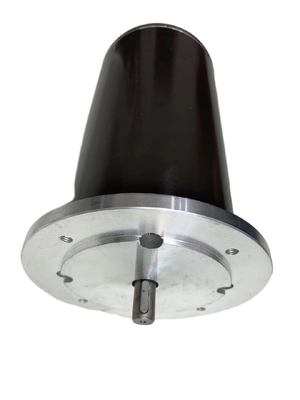

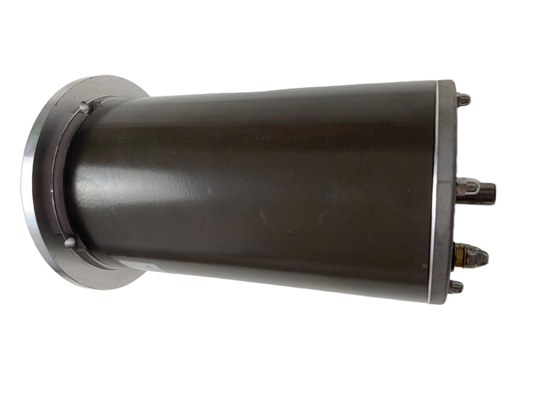

Product Images

Technical Specifications

Installation Options:

B3 Horizontal installation: Horizontal mounting with mounting feet
B5 Vertical flange installation: Vertical mounting without mounting feet
B35 Motor installation: Combined vertical and horizontal installation
Optional: B14 and B34 installation modes available

PMDC Motor Model	Voltage	Rated Power (KW)	Rated Speed (RPM)	Rated Current (A)	Rated Torque (N.m)	Weight (kg)	Cooling
D90B3/5-24V1.5-1500	24	1.5	1500	65	9.5	10.0	Fan cooling
D90B3/5-24V1.8-1400	24	1.8	1400	78	12.2	12.0
D90B3/5-36V1.5-1500	36	1.5	1500	43	9.5	10.0
D90B3/5-36V2.0-1500	36	2.0	1500	57	12.6	12.5
D90B3/5-48V1.5-1500	48	1.5	1500	32	9.5	10.0
D90B3/5-48V1.8-2000	48	1.8	2000	39	8.5	12.0
D90B3/5-48V2.0-1500	48	2.0	1500	43	12.6	12.5
D90B3/5-48V2.5-2800	48	2.5	2800	54	8.4	9.5
D90B3/5-48V3.0-3000	48	3.0	3000	65	9.5	10.5
D90B3/5-60V1.5-1500	60	1.5	1500	26	9.5	10.0
D90B3/5-60V2.0-1500	60	2.0	1500	34	12.6	12.5
D90B3/5-60V3.0-3200	60	3.0	3200	52	8.9	10.5
D90B3/5-72V1.5-1500	72	1.5	1500	21	9.5	10.0
D90B3/5-72V2.0-1500	72	2.0	1500	28	12.6	12.5
D90B3/5-72V3.0-3000	72	3.0	3000	43	9.5	10.5

Technical Drawings

Frequently Asked Questions

Are you a trading company or manufacturer?

We're a manufacturer specializing in micro AC/DC motors and DC gear motors for more than 16 years.

What is the payment term for a new customer?

We can create an Ali Assurance Order Online for new customers, enabling online payment with Master Card, Visa, and other major cards.

What should I provide when choosing a gearbox/speed reducer?

1) Load condition 2) Speed of rotation or speed ratio 3) Work circumstance 4) Space of installation

Do you have a customized service for your standard motors?

Yes, we can customize according to your requirements for voltage, speed, torque, and shaft size/shape.

What's your lead time?

Generally, our regular standard products require 15-30 days, with slightly longer lead times for customized products.
