| Brand Name: | XINHE MOTOR |
| Model Number: | XH-BL146 |
| MOQ: | 2 pieces |
| Price: | $40-60 / piece |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs/month |

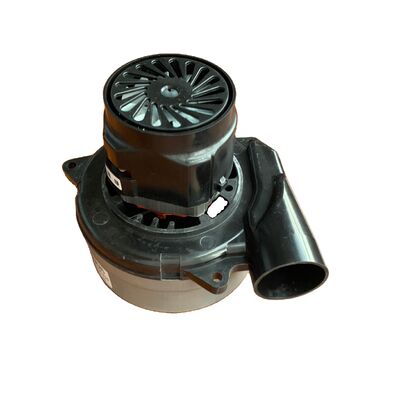

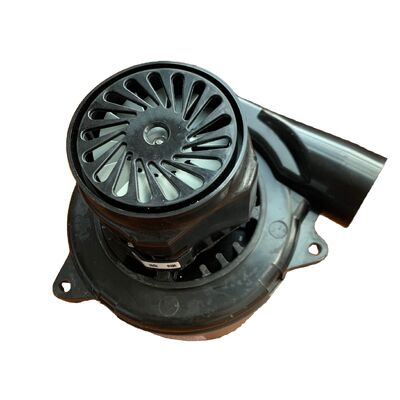

High-performance brushless DC blower motor constructed with high durability materials for exceptional reliability in vacuum cleaner applications.
| Plat [mm] | Volt [V] | Current [A] | Pin [W] | Vacuum [KPa] | Air Flow [L/s] | Pout [W] | Eff [%] |
|---|---|---|---|---|---|---|---|
| Open | 221.0 | 8.05 | 1208.0 | 0.66 | 51.24 | 33.94 | 2.81 |
| 50.0 | 220.9 | 8.00 | 1205.0 | 0.89 | 46.07 | 41.06 | 3.41 |
| 48.0 | 220.8 | 8.04 | 1206.0 | 1.13 | 47.82 | 54.14 | 4.49 |
| 40.0 | 221.1 | 8.11 | 1216.0 | 2.77 | 51.74 | 143.30 | 11.79 |
| 30.0 | 221.2 | 8.16 | 1220.0 | 7.26 | 46.52 | 337.70 | 27.68 |
| 23.0 | 220.9 | 8.00 | 1211.0 | 12.42 | 35.25 | 438.60 | 36.22 |
| 19.0 | 220.8 | 8.05 | 1207.0 | 16.06 | 27.06 | 435.40 | 36.06 |
| 16.0 | 221.1 | 7.76 | 1163.0 | 18.47 | 20.44 | 377.90 | 32.50 |
| 13.0 | 221.2 | 7.08 | 1052.0 | 19.93 | 13.96 | 278.30 | 26.46 |
| 10.0 | 221.0 | 6.40 | 939.3 | 21.62 | 8.56 | 185.30 | 19.73 |
| 6.5 | 221.5 | 5.73 | 834.3 | 23.52 | 3.75 | 88.23 | 10.57 |
| 0.0 | 221.3 | 5.03 | 725.8 | 26.49 | 0.00 | 0.00 | 0.00 |
