High Torque 20N.m 63mm 76mm DC Worm Gear Motor 12V 24V 50W 60W 100W 150W 200W Self-Locking with or Without Encoder

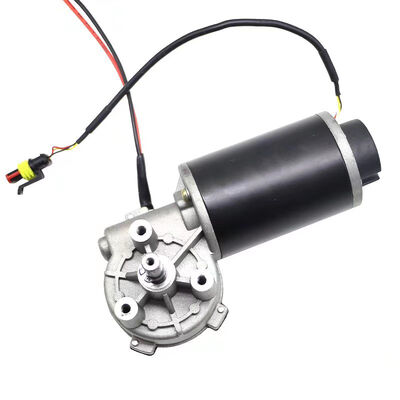

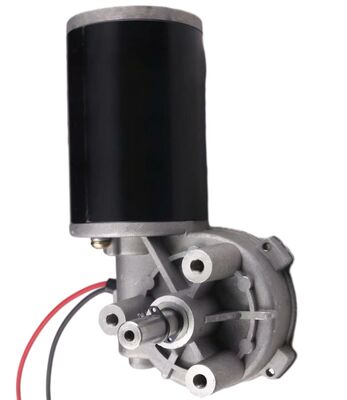

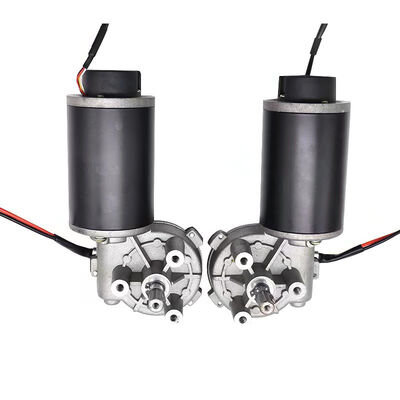

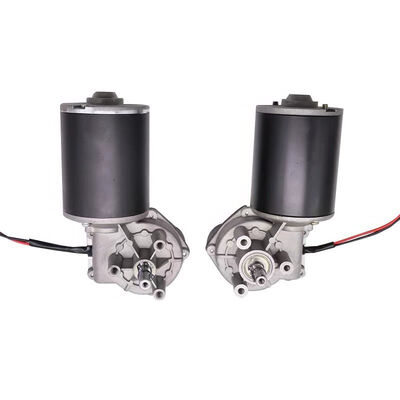

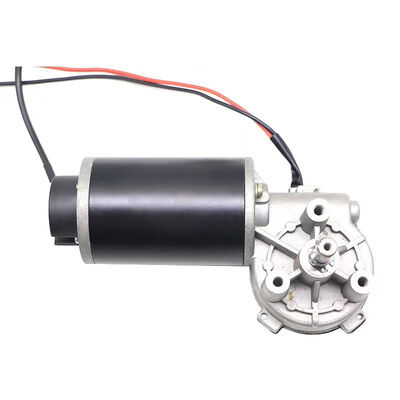

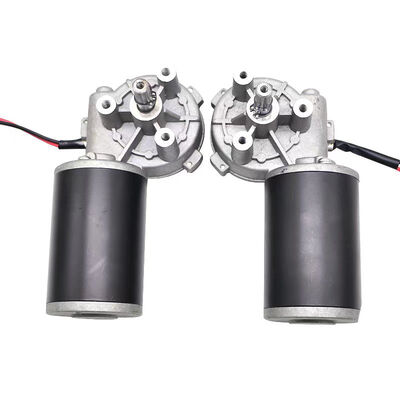

63mm & 76mm Worm Gear Motors

Powerful, compact, and built for lasting performance—our 63mm and 76mm worm gear motors deliver high torque, quiet operation, and reliable self-locking for automation, robotics, smart machinery, and industrial drive systems. Available with or without encoder to match your precision and budget needs.

Key Features

• Two Sizes: 63mm & 76mm frame for flexible installation

• Self-locking worm drive: Prevents back-driving, holds position securely

• High torque & low noise: Smooth, stable, long service life

• Encoder option: Closed-loop control, precise speed & position feedback

• Customizable: Voltage, ratio, speed, shaft, wiring & mounting available

Ideal For

Smart devices, automated conveyors, medical equipment, solar trackers, valve control, robotics, vending & access systems.

Why Choose Us

Rugged construction, consistent quality, competitive pricing, and full technical support. Perfect for high-efficiency, space-saving motion solutions.

Motor Type	Voltage	Power	Speed	Current	speed	current	Torque	Gear ratio	Case length
	V	W	RPM	A	RPM	A	N.M
XH63L/R-1230-130	12	30	130±10	≤1.2	110±10	≤3.5	≥3.3	1:20	85
XH63L/R-1230-150	12	03	150±10	≤1.2	150±10	≤4.5	≥4.5	1:20	85
XH63L/R-2445-180	24	45	180±10	≤1.5	150±10	≤6.5	≥4.5	1:20	85
XH63L/R-2445-150	24	45	150±10	≤1.2	130±10	≤4.5	≥3.3	1:20	85
XH63L/R-4245-180	42	45	180±10	≤1.2	150±10	≤4.5	≥4.5	1:20	85
XH63L/R-2445-210	24	45	210±10	≤1.2	180±10	≤6.5	≥5.0	1:20	85
XH63L/R-4865-150	48	65	150±10	≤1.2	130±10	≤3.5	≥5.0	1:20	85
XH63L/R-2480-65	24	80	65±5	≤1.4	60±10	≤4.5	≥6.0	1:60	85
XH63L/R-2480-75	24	80	75±5	≤1.5	68±10	≤4.5	≥6.0	1:60	85
XH63L/R-1280-80	12	80	80±5	≤1.8	68±10	≤9.0	≥6.0	1:60	85
XH63W-22080-45	220	80	45±5	≤0.2	35±5	≤0.6	≥8.0	1:60	85
XH63L/R-1245-170	12	45	170±10	≤1.4	150±10	≤10	≥3.5	1:24	85
XH63L/R-2430-300	24	30	300±15	≤1.4	250±10	≤4.5	≥2.5	1:15	85
XH63L/R-2430-30	24	30	30±3	≤1.0	235±3	≤3.5	≥4.0	1:75	85









1.Q: Are you trading company or manufacturer?

A: We're manufacturer, We specialize in micro ac/dc motor and dc gear motor for more than 11 years.

2.Q: What is the payment term for a new customer?

A: We can draw up an Ali Assurance Order Online for our new
customer, which can pay online with Master Card, Visa, etc.

3. Q: what should I provide when I choose gearbox/speed reducer?

A: 1)load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation

4.Q: Do you have a customized service for your standard motors?

A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.

5.Q: What's your lead time?

A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
