| Brand Name: | XINHE MOTOR |
| Model Number: | N20 |
| MOQ: | 1pcs |
| Price: | USD4/pc |
| Payment Terms: | TT |
| Supply Ability: | 5000pcs/month |

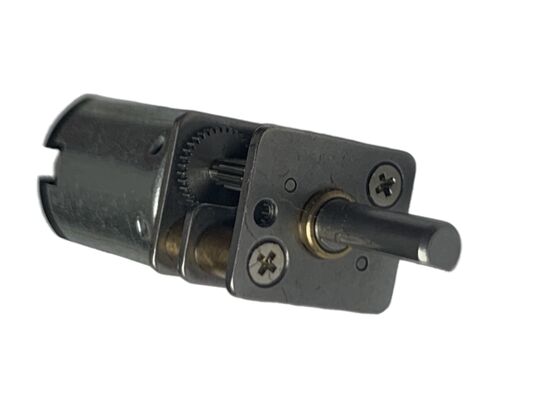

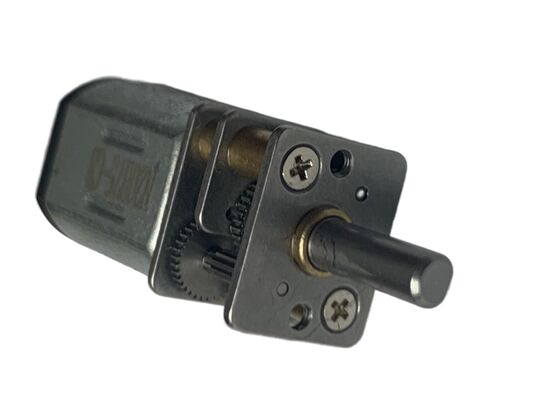

The 12mm N20 gear motor is a compact and efficient DC gear motor designed for various applications requiring precise control and reliable performance. Known for its small size and robust construction, this motor is ideal for projects where space is limited but power and torque are essential. The motor features a 12mm diameter, making it one of the most versatile options in the category of miniature motors.
This brush gear motor comes with a variety of gear ratios to suit different operational needs. Common gear ratios available include 30:1, 50:1, and 100:1, allowing users to select the appropriate speed-torque balance for their specific application. The gear ratio plays a crucial role in determining the output speed and torque, with higher ratios providing greater torque at the expense of speed, and lower ratios offering higher speeds with less torque.
The stall current of this DC gear motor can reach up to 1.6A, which ensures sufficient power to handle demanding loads without compromising motor longevity. This current rating is critical for users to consider when designing their power supply and control systems, ensuring that the motor operates efficiently without overheating or damage. Additionally, the no-load speed of the motor typically ranges from 100 to 300 RPM, depending on the selected gear ratio. This range offers flexibility for applications that require either slower, high-torque operation or faster rotation speeds.
One of the distinguishing features of the 12mm N20 gear motor is its high manufacturing tolerance of 0.05mm, adhering strictly to the provided engineering drawings. This precision ensures consistent performance, smooth operation, and compatibility with other mechanical components in a system. Such tight tolerance is especially important in applications demanding high accuracy and reliability, such as robotics, automation, and small machinery.
The motor utilizes a DC spur gear system, which is known for its simplicity and efficiency. Spur gears provide direct transmission of power with minimal losses, resulting in better performance and longer motor life. The brush gear motor design further enhances reliability by maintaining effective electrical contact while minimizing wear and friction. This combination makes the 12mm N20 gear motor an excellent choice for hobbyists, engineers, and manufacturers looking for a dependable and easy-to-integrate solution.
In summary, the 12mm N20 DC gear motor combines compact dimensions, versatile gear ratios, and solid electrical characteristics to deliver a highly adaptable power unit. Whether used in small robots, precision instruments, or automated devices, this brush gear motor ensures consistent performance and durability. Its DC spur gear motor mechanism guarantees efficient power transmission, making it a preferred choice for applications that require both speed control and torque management. With a stall current of up to 1.6A and no-load speeds ranging from 100 to 300 RPM, users can expect reliable operation tailored to their specific needs. The strict tolerance of 0.05mm further highlights the motor’s quality and suitability for precision engineering tasks.
Overall, the 12mm N20 gear motor stands out as a versatile and reliable component in the realm of miniature DC motors. Its combination of precise engineering, flexible gear ratios, and robust electrical performance makes it an indispensable tool for a variety of technical and industrial applications. Whether you are developing a new robotic system, a fine control mechanism, or a compact automated device, this DC gear motor offers the performance and reliability required to achieve your project goals effectively.
| Gear Ratio | Varies (e.g., 30:1, 50:1, 100:1) |
| Current (Stall) | Up To 1.6A |
| Color | Black, Green, White, Blue, Any Color |
| Motor Length | Approximately 26mm |
| Encoder | 12CPR |
| Motor Type | N20 |
| Operating Voltage | 3V To 12V |
| Brush | Metal Brush & Carbon Brush |
| Motor Diameter | 12mm |
| Application | Robotics, Small Vehicles, DIY Projects |
The 12mm N20 gear motor from XINHE MOTOR is an exceptionally versatile Gear Motor Reducer designed to meet a wide range of application occasions and scenarios. Manufactured in China and certified with CE and RoHS, this DC Brush Gear Motor combines quality and reliability with affordability, priced at just USD4 per piece. With a minimum order quantity of only 1 piece and a supply capacity of 5000 pieces per month, it is an ideal choice for both small-scale projects and large production runs.
This Electric Motor Gearbox features a compact motor diameter of 12mm and a robust metal gearbox, delivering rated torque of up to 400 G·cm and a stall current of up to 1.6A. Such specifications make it perfectly suited for applications requiring precise speed control and high torque in a compact format. Its versatile color options, including black, green, white, blue, or any custom color, allow seamless integration into various designs and products.
In industrial automation, the N20 gear motor is widely used in robotic arms, conveyor systems, and automated machinery where precise movement and reliable torque are critical. Its metal gearbox ensures durability in demanding environments, making it suitable for continuous operation in factory settings.
For consumer electronics, this DC Brush Gear Motor is ideal for small appliances, electric toys, and handheld devices that require smooth and efficient motion control. The compact size and low current consumption make it a favorite among hobbyists and designers working on DIY projects or prototypes.
Medical equipment manufacturers also benefit from the N20 gear motor’s precision and reliability, utilizing it in devices such as portable diagnostic tools, pumps, and small motorized instruments where space is limited but performance cannot be compromised.
The N20 gear motor’s carton packing ensures safe delivery, with a typical delivery time of 30 days and payment terms based on TT. Whether you need a single unit for testing or thousands for mass production, XINHE MOTOR’s supply ability ensures timely fulfillment.
Overall, the 12mm N20 gear motor from XINHE MOTOR is an excellent solution for anyone seeking a compact, durable, and efficient Gear Motor Reducer or Electric Motor Gearbox. Its adaptability across numerous industries and applications makes it a reliable component for enhancing performance and extending product lifecycles.
Introducing the 12mm N20 Brush DC Gear Motor from XINHE MOTOR, a reliable and efficient Gearbox DC Motor made in China. Our N20 model, certified with CE and RoHS, offers exceptional quality with a no-load speed typically ranging from 100 to 300 RPM depending on the gear ratio. This Brush DC Gear Motor features a high precision tolerance of 0.05mm according to drawing specifications and includes a 12CPR encoder for accurate performance.
We provide flexible product customization services to meet your specific needs. The operating voltage for this Gearbox DC Motor ranges from 3V to 12V, and you can choose from multiple color options including black, green, white, blue, or any custom color you require. Each unit is carefully packed in cartons to ensure safe delivery.
With a minimum order quantity of just 1 piece and a competitive price of USD 4 per piece, XINHE MOTOR guarantees a supply ability of 5000 pieces per month. Our delivery time is approximately 30 days, with payment terms via TT. Whether you need a Brush DC Gear Motor for prototyping or large-scale production, we are ready to support your project with high-quality products and professional service.
Our 12mm N20 Gear Motor is designed to provide reliable and efficient performance for a wide range of applications including robotics, automation, and small mechanical projects. For technical support, we offer detailed datasheets, wiring diagrams, and installation guides to help you integrate the motor seamlessly into your design.
If you encounter any issues with the motor such as unusual noise, reduced torque, or inconsistent speed, please refer to the troubleshooting section of the manual. Common solutions include checking the power supply voltage, ensuring proper gear alignment, and verifying load conditions are within specified limits.
We also provide repair and replacement services for units that are found to be defective under warranty. To maximize the lifespan of your N20 Gear Motor, we recommend operating it within the specified voltage and load ratings, and avoiding exposure to excessive dust, moisture, or mechanical shock.
For custom requirements or bulk orders, our technical team can assist with motor customization options including shaft modifications, gear ratios, and encoder integration to better suit your project needs.
Comprehensive support resources including FAQs, user forums, and video tutorials are available online to help you get the most out of your 12mm N20 Gear Motor.
Product Packaging:
The 12mm N20 gear motor is carefully packaged to ensure it arrives in perfect condition. Each motor is individually packed in an anti-static bag to protect against moisture and static damage. The motors are then placed in a sturdy cardboard box with foam inserts to prevent movement and absorb shocks during transit. The packaging is compact yet secure, minimizing the risk of damage while optimizing shipping efficiency.
Shipping:
We offer reliable shipping options worldwide for the 12mm N20 gear motor. Orders are processed promptly and dispatched within 1-2 business days. Shipping methods include standard postal service, express courier, and freight options for bulk orders. Tracking information is provided for all shipments to ensure customers can monitor their package status. We take care to choose the best shipping partners to guarantee timely and safe delivery.
Q1: What is the brand and model number of this 12mm gear motor?
A1: The brand name is XINHE MOTOR, and the model number is N20.
Q2: Where is the 12mm N20 gear motor manufactured?
A2: This gear motor is made in China.
Q3: What certifications does the XINHE MOTOR N20 gear motor have?
A3: It has CE and RoHS certifications.
Q4: What is the minimum order quantity and the price per unit?
A4: The minimum order quantity is 1 piece, and the price is USD 4 per piece.
Q5: What are the packaging details and delivery time for this product?
A5: The gear motor is packed in cartons, and the delivery time is 30 days.
Q6: What are the payment terms and supply capacity for the N20 gear motor?
A6: Payment terms are via TT (Telegraphic Transfer), and the supply ability is 5000 pieces per month.
