90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm

90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm

Brand Name: XINHE MOTOR
Model Number: XH-BL90
MOQ: 2 pieces
Price: $200-500 / piece
Payment Terms: T/T
Supply Ability: 3000pcs/month
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE ROHS
Continuous Current(A):
78A MAX
Efficiency:
IE 1
Speed(RPM):
1200~3200rpm
Commutation:
Brushless
Construction:
Permanent Magnet
Protect Feature:
Drip-proof IP54
Torque:
12.6N.m MAX
Warranty:
3 Months ~ 1 Year
Keywords:
Bldc
Rated Voltage:
24V/36V/48V/72V/120VDC
Application:
Electric Rail Flat Car, Sweeper, Electric Forklift, Electric Boat,Railroad Cars, Forklifts, Lifting Platforms
Motor Type:
Brushless Motor
Rotor Material:
Rare Earth
Controller:
FOC Vector Control Technology
Mounting Flange:
B3/B5/B35/B14/56C
Controller Standby Power Consumption:
3W
MAX OUTPOWER:
3.0KW
Standard Or Nonstandard:
Standard
Number Of Phase:
3
Frame:
90mm
Shape:
Worm RV GERA BOX
Magnetic Pole Number:
Two Pairs
Noise:
LESS THAN 45dB
Color:
Black
Long Life:
2000HOURS
Packaging Details:
Carton packaging
Supply Ability:
3000pcs/month
Product Description
48VDC Brushless BLDC Motor 2.2KW 1200rpm～3200rpm with Hall Sensor

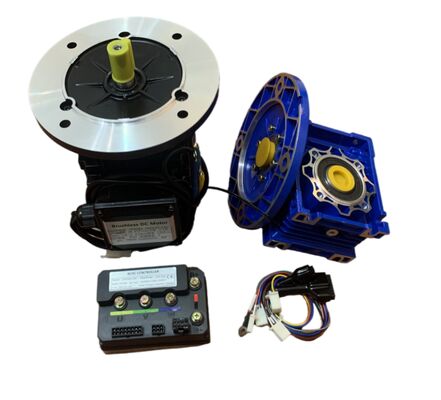

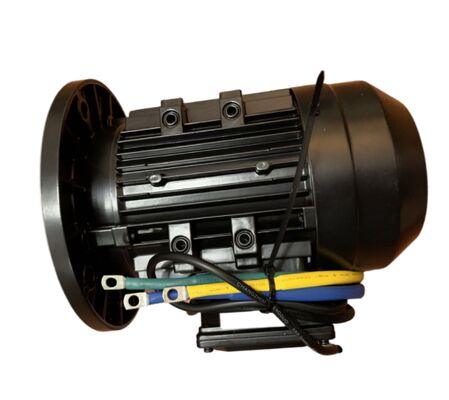

90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 0 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 1
Product Overview

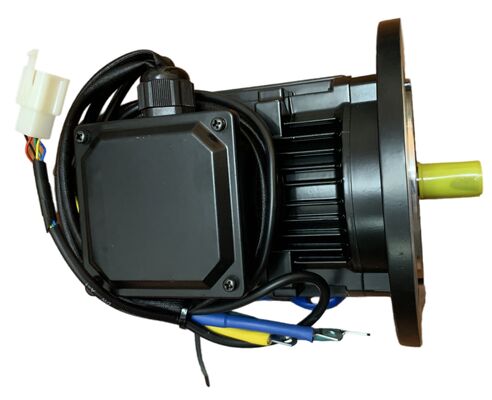

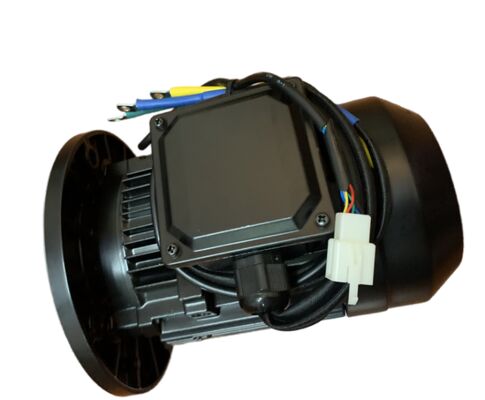

90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 2 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 3 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 4
Technical Specifications

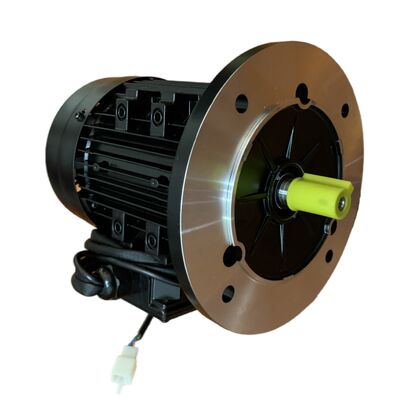

90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 5 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 6 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 7 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 8
Brushless DC Motor Specifications
Installation Options:
B3 Horizontal installation: Horizontal mounting with mounting feet
B5 Vertical flange installation: Vertical mounting without mounting feet
Motor installation fixed mode, vertical horizontal installation B35. The installation mode of B14 and B34 is optional.
BLDC MOTOR Model Voltage Rated Power (KW) Rated Speed (RPM) Rated Current (A) Rated Torque (N.m) Weight (kg) Cooling
BL90B3/5-24V1.5-1500 24 1.5 1500 65 9.5 10.0 Fan cooling
BL90B3/5-24V1.8-1400 24 1.8 1400 78 12.2 12.0
BL90B3/5-36V1.5-1500 36 1.5 1500 43 9.5 10.0
BL90B3/5-36V2.0-1500 36 2.0 1500 57 12.6 12.5
BL90B3/5-48V1.5-1500 48 1.5 1500 32 9.5 10.0
BL90B3/5-48V1.8-2000 48 1.8 2000 39 8.5 12.0
BL90B3/5-48V2.0-1500 48 2.0 1500 43 12.6 12.5
BL90B3/5-48V2.5-2800 48 2.5 2800 54 8.4 9.5
BL90B3/5-48V3.0-3000 48 3.0 3000 65 9.5 10.5
BL90B3/5-60V1.5-1500 60 1.5 1500 26 9.5 10.0
BL90B3/5-60V2.0-1500 60 2.0 1500 34 12.6 12.5
BL90B3/5-60V3.0-3200 60 3.0 3200 52 8.9 10.5
BL90B3/5-72V1.5-1500 72 1.5 1500 21 9.5 10.0
BL90B3/5-72V2.0-1500 72 2.0 1500 28 12.6 12.5
BL90B3/5-72V3.  -3000 72 3.0 3000 43 9.5 10.5
Key Features
  • The rotor is of rare-earth permanent magnet structure, featuring large starting torque and low starting current
  • Small in size, light in weight, and has high efficiency
  • Excellent speed regulation performance with wide efficient operating range
  • Permanent magnet structure has no carbon brushes, simple structure, requires no maintenance, and has good reliability
  • Can be frequently started and stopped, and can operate continuously under the rated load
  • Same size as the Y2 series AC asynchronous motor, making it convenient for replacement and installation
Performance Characteristics
Overload Capacity:
The motor can handle a short-term power overload of 1.5 times, a torque overload of 3 times, and can operate continuously under the rated load.
Operating Environment:
Altitude below 4000 meters, air humidity ≤ 90% RH, environmental temperature ranging from -25℃ to +60℃.
Technical Drawings
90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 9 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 10 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 11 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 12 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 13 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 14 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 15 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 16 90mm 48VDC Brushless motor 2.2KW BLDC motor featuring Hall sensor for precise control and speed adjustable between 1200rpm and 3200rpm 17
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We're manufacturer, We specialize in micro ac/dc motor and dc gear motor for more than 16 years.
Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc.
Q: What should I provide when I choose gearbox/speed reducer?
A: 1) Load condition 2) Speed of rotation or speed ratio 3) Work circumstance 4) Space of installation
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30 days, a bit longer for customized products.
