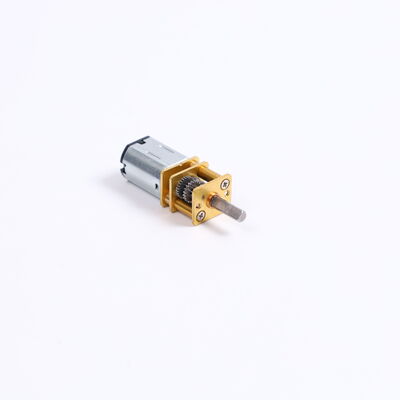

Round 12mm Diameter Carbon Brush Motor 6V 150rpm N10, N20, N30 Motors and Gearboxes

Brand Name:	XINHE MOTOR
Model Number:	XH-GM12-N20
MOQ:	2 pieces
Price:	$2.52-3.60 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Continuous Current(A):

0.5A

Efficiency:

IE 2

Speed(RPM):

3~6000RPM

Commutation:

Brush

Construction:

Permanent Magnet

Frame:

12mm

Motor Mounting Type:

Panel Mount

Protect Feature:

Drip-proof

Rated Power:

Speed Rpm:

100 RPM

Torque:

Customized

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

Other

HIGH TORRQUE:

1600mA

MIDDLE TORQUE:

700mA

LOW TORQUE:

360mA

GEAR RATE:

5:1 TO 1000:1

LONG LIFE:

300HOURS

GEAR MATERIAL:

Powder Metallurgy

ENCODER:

12CPR

BRACKET:

COPPER

NOISE:

LESS THAN 20dB

DIAMETER:

12mm

Product Description

Product Parameter

Model	Voltage	No load speed	Noload current	Stall torque	Gear ratio
	Unit:VDC	Unit: rpm	Unit: mA	Unit: kg.cm
N20H5	6V/12V	6000 rpm	120/60mA	0.1 kg.cm	5:1
N20H10	6V/12V	3000 rpm	120/60mA	0.2 kg.cm	10:1
N20H20	6V/12V	1500 rpm	120/60mA	0.4 kg.cm	20:1
N20H30	6V/12V	1000 rpm	120/60mA	0.6 kg.cm	30:1
N20H50	6V/12V	625 rpm	120/60mA	1.0 kg.cm	50:1
N20H75	6V/12V	400 rpm	120/60mA	1.5 kg.cm	75:1
N20H100	6V/12V	320 rpm	120/60mA	2.0 kg.cm	100:1
N20H150	6V/12V	200 rpm	120/60mA	3.0 kg.cm	150:1
N20H210	6V/12V	140 rpm	120/60mA	3.6 kg.cm	210:1
N20H250	6V/12V	120 rpm	120/60mA	4.2 kg.cm	250:1
N20H298	6V/12V	100 rpm	120/60mA	5.0 kg.cm	298:1
N20H380	6V/12V	78rpm	120/60mA	6.3 kg.cm	380:1
N20H1000	6V/12V	32 rpm	120/60mA	9.0 kg.cm	1000:1

Model	Voltage	No load speed	Noload current	Stall torque	Gear ratio
	Unit:VDC	Unit: rpm	Unit: mA	Unit: kg.cm
N20M5	6V/12V	4400 rpm	40/20mA	0.1kg.cm	5:1
N20M10	6V/12V	2200 rpm	40/20mA	0.2 kg.cm	10:1
N20M20	6V/12V	1100 rpm	40/20mA	0.4 kg.cm	20:1
N20M30	6V/12V	730 rpm	40/20mA	0.5 kg.cm	30:1
N20M50	6V/12V	420 rpm	40/20mA	0.8 kg.cm	50:1
N20M75	6V/12V	290 rpm	40/20mA	1.2 kg.cm	75:1
N20M100	6V/12V	220 rpm	40/20mA	1.5 kg.cm	100:1
N20M150	6V/12V	150 rpm	40/20mA	1.7 kg.cm	150:1
N20M210	6V/12V	100 rpm	40/20mA	2.4 kg.cm	210:1
N20M250	6V/12V	90 rpm	40/20mA	2.8 kg.cm	250:1
N20M298	6V/12V	75 rpm	40/20mA	3.3 kg.cm	298:1
N20M380	6V/12V	58 rpm	40/20mA	4.2 kg.cm	380:1
N20M1000	6V/12V	22 rpm	40/20mA	6.0 kg.cm	1000:1

Model	Voltage	No load speed	Noload current	Stall torque	Gear ratio
	Unit:VDC	Unit: rpm	Unit: mA	Unit: kg.cm
N20L5	6V/12V	2500 rpm	30/15mA	0.05kg.cm	5:1
N20L10	6V/12V	1300 rpm	30/15mA	0.1 kg.cm	10:1
N20L20	6V/12V	650 rpm	30/15mA	0.2 kg.cm	20:1
N20L30	6V/12V	440 rpm	30/15mA	0.4 kg.cm	30:1
N20L50	6V/12V	250 rpm	30/15mA	0.5 kg.cm	50:1
N20L75	6V/12V	170 rpm	30/15mA	0.8 kg.cm	75:1
N2OL100	6V/12V	120 rpm	30/15mA	1.0 kg.cm	100:1
N20L150	6V/12V	85 rpm	30/15mA	1.5 kg.cm	150:1
N20L210	6V/12V	60 rpm	30/15mA	2.0 kg.cm	210:1
N20L250	6V/12V	50 rpm	30/15mA	2.4 kg.cm	250:1
N20L298	6V/12V	45 rpm	30/15mA	2.8 kg.cm	298:1
N20L380	6V/12V	35 rpm	30/15mA	3.5 kg.cm	380:1
N20L1000	6V/12V	14 rpm	30/15mA	5.0 kg.cm	1000:1

Product Name	12mm 12v 24v Motor Micro Dc Gear Motor N20 12mm Gear Motor With Encoder
Gear material	Stainless steel
Noise	Low Noise Level
Certification	CE/RoHS
Port Shipment	ShenZhen
Ship Date	5-7days
Other Questions	Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions

Products Show

Related Products

Company Profile

Our company is located in the center of Shenzhen City. We are a specialized factory that produces ac/dc motor, gear motor, brushless motor, vacuum cleaner motor, stepper motor. Our products are applied to various kinds of devices, like kitchen appliances, air flow products, air conditioners, water heaters, water & induction pumps, power tools and electrical toys as well as household appliances.In line with the management idea of "humanist, the good faith is supreme" and the quality consciousness of "strives for perfection", we have gathered a team of specialists for engineering, manufacture, quality control, production management and technology development.Our company comprehensively complies with ISO9001:2001 management systems. We are supplying our motors to many famous worldwide companies of top brands with different applications in Europe, the Middle East, East Asia and South America.

Our Certification

Customer Praise

Packaging And Shipping

FAQ

1.Q: Are you trading company or manufacturer? A: We're manufacturerï¼Œ We specialize in micro ac/dc motor and dc gear motor for more than 11 years. 2.Q: What is the payment term for a new customer? A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. 3. Q: what should I provide when I choose gearbox/speed reducer? A: 1) load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation 4.Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. 5.Q: What's your lead time? A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
