products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
DC MOTOR
Created with Pixso.

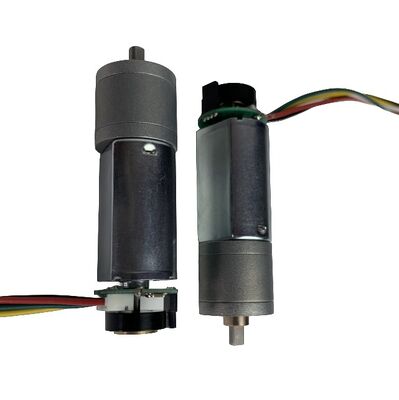

High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder

High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder

High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder

Brand Name: XINHE MOTOR
Model Number: XH-20Y180-31
MOQ: 10 pieces
Price: $9-10 / piece
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Continuous Current(A):
0.05A
Efficiency:
IE 1
Speed(RPM):
329 R/min
Commutation:
Brush
Construction:
Permanent Magnet
Protect Feature:
Drip-proof
Torque:
0.6n.m
Type:
Gear Motor
Usage:
Home Appliance
Warranty:
3 Months ~ 1 Year
Product Name:
Dc Motor Encoder
No Load Current:
0.05A
No Load Speed:
329 R/min
Max Efficiency Speed:
277r/min
Max Efficiency Torque:
0.5kg.cm
Max Efficiency Current:
0.19A
Power:
1.5w
Stall Torque:
3.2kg.cm
Stall Current:
0.83A
Keywords:
DC Gear Motor
Product Description
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 0
Product Parameter
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 2
Model
Voltage
No load speed
Noload current
Stall torque
 Gear ratio

Unit: VDC
Unit: rpm
Unit: mA
Unit: kg.cm

20D18011-EN
12V
535rpm
60mA
0.89kg.cm
11.7:1
20D18029-EN
12V
215 rpm
60mA
2 kg.cm
29:1
20D18056-EN
12V
110 rpm
60mA
3.3 kg.cm
56:1
20D180107-EN
12V
58 rpm
60mA
5.6kg.cm
107:1
20D180205-EN
12V
30 rpm
60mA
9.7 kg.cm
205:1
20D180455-EN
12V
13 rpm
60mA
15kg.cm
455:1
20D13031-EN
12V
260 rpm
40mA
1.3 kg.cm
31:1
20D13078-EN
12V
105 rpm
40mA
2.8kg.cm
78:1
20D130195-EN
12V
42 rpm
60mA
6.4 kg.cm
195:1
20D130488-EN
12V
16 rpm
60mA
11 kg.cm
488:1
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 4
Product Name
High Quality 25mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder
Gear material
Stainless steel
Noise
Low Noise Level
Certification
CE/RoHS
Port Shipment
ShenZhen
Ship Date
5-7days
Other Questions
Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions
Products Show
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 6
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 8
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 10
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 12
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 14
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 16
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 18
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 20
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 22
Related Products
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 24
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 26
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 28
Company Profile
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 30
Our company is located in the center of Shenzhen City. We are a specialized factory that produces ac/dc motor, gear motor, brushless motor, vacuum cleaner motor, stepper motor. Our products are applied to various kinds of devices, like kitchen appliances, air flow products, air conditioners, water heaters, water & induction pumps, power tools and electrical toys as well as household appliances.In line with the management idea of "humanist, the good faith is supreme" and the quality consciousness of "strives for perfection", we have gathered a team of specialists for engineering, manufacture, quality control, production management and technology development.Our company comprehensively complies with ISO9001:2001 management systems. We are supplying our motors to many famous worldwide companies of top brands with different applications in Europe, the Middle East, East Asia and South America.
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 32
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 34
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 36
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 38
Our Certification
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 40
Customer Praise
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 42
Packaging And Shipping
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 44
FAQ
High Quality 20mm 6v 12v 24v Dc 20D Gear Motor Encoder Available Gear Motor With Encoder 46
1.Q: Are you trading company or manufacturer? A: We're manufacturer， We specialize in micro ac/dc motor and dc gear motor for more than 11 years. 2.Q: What is the payment term for a new customer? A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. 3. Q: what should I provide when I choose gearbox/speed reducer? A: 1) load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation 4.Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. 5.Q: What's your lead time? A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
