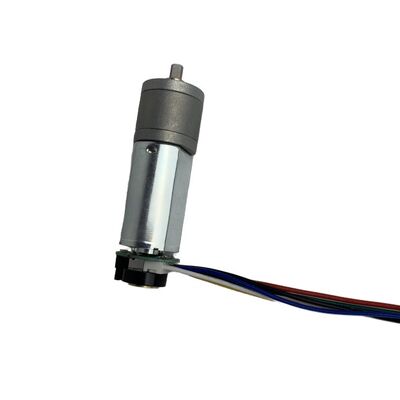

12V Gear Motor High Quality Smart Wear Faucet's 20mm DC Brush Motor Encoder Gear Motor Permanent Magnet Construction

Brand Name:	XINHE MOTOR
Model Number:	XH-20Y180-31
MOQ:	1 piece
Price:	$8-9 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE ROHS

Continuous Current(A):

0.05A

Efficiency:

IE 1

Speed(RPM):

100r/min

Commutation:

Brush

Construction:

Permanent Magnet

Frame:

20mm

Motor Mounting Type:

Panel Mount

Protect Feature:

Drip-proof

Rated Power:

Speed Rpm:

100 RPM

Torque:

0.5kg.cm

Type:

Gear Motor

Usage:

Home Appliance, Cosmetic Instrument, Smart Home

Warranty:

3 Months ~ 1 Year

Product Name:

Dc Motor Encoder

No Load Current:

0.05A

No Load Speed:

329 R/min

Max Efficiency Speed:

277r/min

Max Efficiency Torque:

0.5kg.cm

Max Efficiency Current:

0.19A

Stall Torque:

3.2kg.cm

Stall Current:

0.83A

Keywords:

DC Gear Motor

Product Description

Product Parameter

Model	Voltage	No load speed	Noload current	Stall torque	Gear ratio
	Unit: VDC	Unit: rpm	Unit: mA	Unit: kg.cm
20D18011-EN	12V	535rpm	60mA	0.89kg.cm	11.7:1
20D18029-EN	12V	215 rpm	60mA	2 kg.cm	29:1
20D18056-EN	12V	110 rpm	60mA	3.3 kg.cm	56:1
20D180107-EN	12V	58 rpm	60mA	5.6kg.cm	107:1
20D180205-EN	12V	30 rpm	60mA	9.7 kg.cm	205:1
20D180455-EN	12V	13 rpm	60mA	15kg.cm	455:1
20D13031-EN	12V	260 rpm	40mA	1.3 kg.cm	31:1
20D13078-EN	12V	105 rpm	40mA	2.8kg.cm	78:1
20D130195-EN	12V	42 rpm	60mA	6.4 kg.cm	195:1
20D130488-EN	12V	16 rpm	60mA	11 kg.cm	488:1

Product Name	37mm Micro 6v 12v Dc Geared Motor Can Match Encoder Dc Motor With Encoder 24v
Gear material	Stainless steel
Noise	Low Noise Level
Certification	CE/RoHS
Port Shipment	ShenZhen
Ship Date	5-7days
Other Questions	Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions

Products Show

Related Products

Company Profile

Our company is located in the center of Shenzhen City. We are a specialized factory that produces ac/dc motor, gear motor, brushless motor, vacuum cleaner motor, stepper motor. Our products are applied to various kinds of devices, like kitchen appliances, air flow products, air conditioners, water heaters, water & induction pumps, power tools and electrical toys as well as household appliances.In line with the management idea of "humanist, the good faith is supreme" and the quality consciousness of "strives for perfection", we have gathered a team of specialists for engineering, manufacture, quality control, production management and technology development.Our company comprehensively complies with ISO9001:2001 management systems. We are supplying our motors to many famous worldwide companies of top brands with different applications in Europe, the Middle East, East Asia and South America.

Our Certification

Customer Praise

Packaging And Shipping

FAQ

1.Q: Are you trading company or manufacturer? A: We're manufacturerï¼Œ We specialize in micro ac/dc motor and dc gear motor for more than 11 years. 2.Q: What is the payment term for a new customer? A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. 3. Q: what should I provide when I choose gearbox/speed reducer? A: 1) load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation 4.Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. 5.Q: What's your lead time? A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
