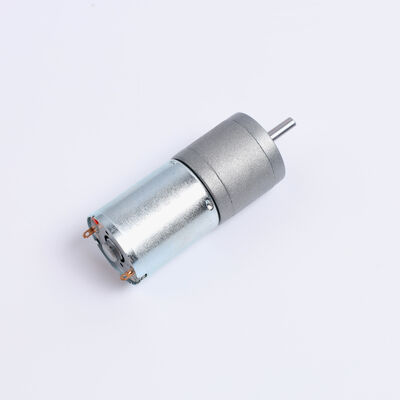

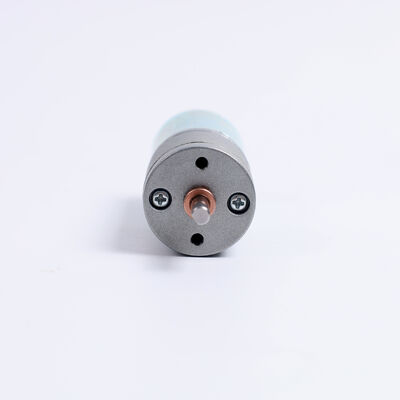

25mm 25D High Torque 12V DC Electric Gear Motor stall current 6A

Brand Name:	XINHE MOTOR
Model Number:	XH-25D
MOQ:	10 pieces
Price:	$4-6 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

RoHS

Continuous Current(A):

0.1-0.3A

Efficiency:

IE 1

Speed(RPM):

12-200 R/min

Commutation:

Brush

Construction:

Permanent Magnet

Frame:

25mm

IP Rating:

IP55

Motor Mounting Type:

Panel Mount

Protect Feature:

Drip-proof

Rated Power:

10 W

Speed Rpm:

100 RPM

Torque:

Stall 3N.m

Type:

Gear Motor

Usage:

Home Appliance

Warranty:

3 Months ~ 1 Year

Keywords:

Dc High Torque Electric Gear Motor

Product Name:

PMDC Gear Motor

Rated Voltage:

DC 12V 24v

Power:

10w

Diameter:

25mm

Gear Material:

Metal Gear Option

Weight:

200g

Brush Type:

Cabon Brush

Encoder:

48CPR

Product Description

Product Parameter

Model	Voltage	No load speed	Noload current	Stall torque	Gear ratio
	Unit: VDC	Unit: rpm	Unit: mA	Unit: kg.cm
25D370H4	6V/12V	2020 rpm	550/275mA	0.58 kg.cm	4.4:1
25D370H9	6V/12V	1010 rpm	550/275mA	1.25 kg.cm	9.7:1
25D370H20	6V/12V	480 rpm	550/275mA	2.6 kg.cm	20.4:1
25D370H34	6V/12V	285 rpm	550/275mA	4.3 kg.cm	34:1
25D370H47	6V/12V	210 rpm	550/275mA	5.8kg.cm	47:1
25D370H75	6V/12V	130 rpm	550/275mA	9.4 kg.cm	75:1
25D370H99	6V/12V	100rpm	550/275mA	11.5kg.cm	99:1
25D370H172	6V/12V	57rpm	550/275mA	18.8 kg.cm	172:1
25D370H227	6V/12V	43 rpm	550/275mA	24.8 kg.cm	227:1
25D370H378	6V/12V	26 rpm	550/275mA	30 kg.cm	378:1
25D370H499	6V/12V	19rpm	550/275mA	30kg.cm	499:1

Product Name	Customized 12v Micro Dc Gear Motor Gearbox 25mm Gear Motor
Gear material	Stainless steel
Noise	Low Noise Level
Certification	CE/RoHS
Port Shipment	ShenZhen
Ship Date	5-7days
Other Questions	Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions

Products Show

Related Products

Company Profile

Our company is located in the center of Shenzhen City. We are a specialized factory that produces ac/dc motor, gear motor, brushless motor, vacuum cleaner motor, stepper motor. Our products are applied to various kinds of devices, like kitchen appliances, air flow products, air conditioners, water heaters, water & induction pumps, power tools and electrical toys as well as household appliances.In line with the management idea of "humanist, the good faith is supreme" and the quality consciousness of "strives for perfection", we have gathered a team of specialists for engineering, manufacture, quality control, production management and technology development.Our company comprehensively complies with ISO9001:2001 management systems. We are supplying our motors to many famous worldwide companies of top brands with different applications in Europe, the Middle East, East Asia and South America.

Our Certification

Customer Praise

Packaging And Shipping

FAQ

1.Q: Are you trading company or manufacturer? A: We're manufacturerï¼Œ We specialize in micro ac/dc motor and dc gear motor for more than 11 years. 2.Q: What is the payment term for a new customer? A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. 3. Q: what should I provide when I choose gearbox/speed reducer? A: 1) load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation 4.Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. 5.Q: What's your lead time? A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
