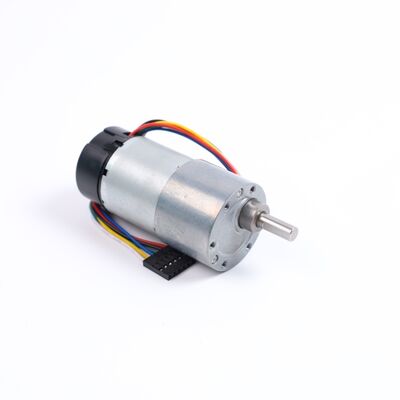

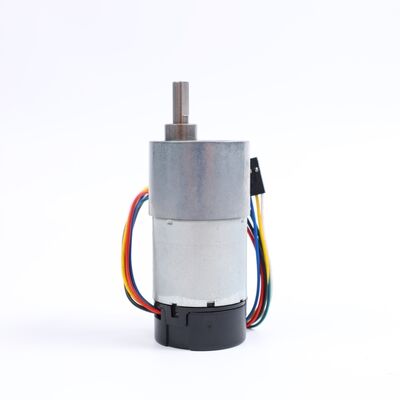

Customized High Power 6V/24V DC Gear Motor Encoder 37mm High-Speed Gearbox Fan Boat Electric Bicycle; 24VDC Brush Commutation

Brand Name:	XINHE MOTOR
Model Number:	XH-GM500-37D
MOQ:	100 pieces
Price:	$9.50-12 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Continuous Current(A):

Customized

Efficiency:

IE 2

Speed(RPM):

30~1000RPM

Commutation:

Brush

Construction:

Permanent Magnet

Protect Feature:

Drip-proof

Torque:

Customized

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Fan, Home Appliance

Warranty:

3 Months ~ 1 Year

HIGH TORRQUE:

CURRENT 5000mA

GEAR CLEARANCE:

VERY SMALL

SHAFT DIAMETER:

6.0mm

GEAR RATE:

1:1 TO 131:1

LONG LIFE:

500HOURS

GEAR MATERIAL:

Powder Metallurgy

ENCODER:

64CPR

BRACKET:

COPPER

NOISE:

LESS THAN 45dB

DIAMETER:

37mm

Product Description

Product Parameter

Model	Voltage	No load speed	Noload current	Stall torque	Gear ratio
	Unit: VDC	Unit: rpm	Unit: mA	Unit: kg.cm
37D3019-EN	12V	500rpm	300mA	6 kg.cm	19:1
37D3030-EN	12V	350 rpm	300mA	8 kg.cm	30:1
37D3050-EN	12V	200 rpm	300mA	12.3 kg.cm	50:1
37D3067-EN	12V	150 rpm	300mA	14.5 kg.cm	70:1
37D30100-EN	12V	100 rpm	300mA	16 kg.cm	100:1
37D30131-EN	12V	80 rpm	300mA	18 kg.cm	131:1
37D30168-EN	12V	62 rpm	300mA	23 kg.cm	168:1
37D30270-EN	12V	35 rpm	300mA	70 kg.cm	270:1
37D30506-EN	12V	21 rpm	300mA	70 kg.cm	506:1
37D30810-EN	12V	13 rpm	300mA	70 kg.cm	810:1

Product Name	Customized DC Gear Motor Encoder 37mm Gearbox High Power 6V 24V 100rpm Encoder Gear Motor
Gear material	Stainless steel
Noise	Low Noise Level
Certification	CE/RoHS
Port Shipment	ShenZhen
Ship Date	5-7days
Other Questions	Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions

Products Show

Related Products

Company Profile

Our company is located in the center of Shenzhen City. We are a specialized factory that produces ac/dc motor, gear motor, brushless motor, vacuum cleaner motor, stepper motor. Our products are applied to various kinds of devices, like kitchen appliances, air flow products, air conditioners, water heaters, water & induction pumps, power tools and electrical toys as well as household appliances.In line with the management idea of "humanist, the good faith is supreme" and the quality consciousness of "strives for perfection", we have gathered a team of specialists for engineering, manufacture, quality control, production management and technology development.Our company comprehensively complies with ISO9001:2001 management systems. We are supplying our motors to many famous worldwide companies of top brands with different applications in Europe, the Middle East, East Asia and South America.

Our Certification

Customer Praise

Packaging And Shipping

FAQ

1.Q: Are you trading company or manufacturer? A: We're manufacturerï¼Œ We specialize in micro ac/dc motor and dc gear motor for more than 11 years. 2.Q: What is the payment term for a new customer? A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. 3. Q: what should I provide when I choose gearbox/speed reducer? A: 1) load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation 4.Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. 5.Q: What's your lead time? A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
