products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
DC MOTOR
Created with Pixso.

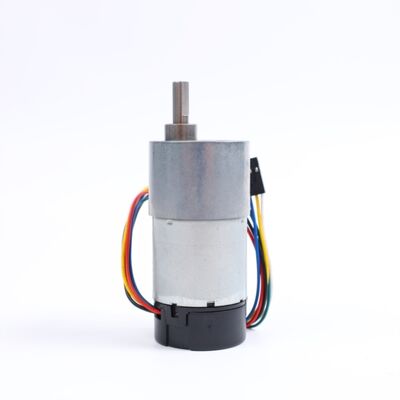

12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder

12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder

12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder

Brand Name: XINHE MOTOR
Model Number: XH-GM500-37D
MOQ: 100 pieces
Price: $9-12 / piece
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Continuous Current(A):
Customized
Efficiency:
IE 2
Speed(RPM):
30~1000RPM
Commutation:
Brush
Construction:
Permanent Magnet
Protect Feature:
Drip-proof
Torque:
Customized
Type:
Gear Motor
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance
Warranty:
3 Months ~ 1 Year
HIGH TORRQUE:
CURRENT 5000mA
GEAR CLEARANCE:
VERY SMALL
SHAFT DIAMETER:
6.0mm
GEAR RATE:
1:1 TO 131:1
LONG LIFE:
500HOURS
GEAR MATERIAL:
Powder Metallurgy
ENCODER:
64CPR
BRACKET:
COPPER
NOISE:
LESS THAN 45dB
DIAMETER:
37mm
Product Description
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 0
Product Parameter
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 2
Model
Voltage
No load speed
Noload current
Stall torque
 Gear ratio

Unit: VDC
Unit: rpm
Unit: mA
Unit: kg.cm

37D3019-EN
12V
500rpm
300mA
6 kg.cm
19:1
37D3030-EN
12V
350 rpm
300mA
8 kg.cm
30:1
37D3050-EN
12V
200 rpm
300mA
12.3 kg.cm
50:1
37D3067-EN
12V
150 rpm
300mA
14.5 kg.cm
70:1
37D30100-EN
12V
100 rpm
300mA
16 kg.cm
100:1
37D30131-EN
12V
80 rpm
300mA
18 kg.cm
131:1
37D30168-EN
12V
62 rpm
300mA
23 kg.cm
168:1
37D30270-EN
12V
35 rpm
300mA
70 kg.cm
270:1
37D30506-EN
12V
21 rpm
300mA
70 kg.cm
506:1
37D30810-EN
12V
13 rpm
300mA
70 kg.cm
810:1
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 4
Product Name
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder
Gear material
Stainless steel
Noise
Low Noise Level
Certification
CE/RoHS
Port Shipment
ShenZhen
Ship Date
5-7days
Other Questions
Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions
Products Show
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 6
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 8
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 10
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 12
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 14
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 16
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 18
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 20
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 22
Related Products
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 24
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 26
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 28
Company Profile
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 30
Our company is located in the center of Shenzhen City. We are a specialized factory that produces ac/dc motor, gear motor, brushless motor, vacuum cleaner motor, stepper motor. Our products are applied to various kinds of devices, like kitchen appliances, air flow products, air conditioners, water heaters, water & induction pumps, power tools and electrical toys as well as household appliances.In line with the management idea of "humanist, the good faith is supreme" and the quality consciousness of "strives for perfection", we have gathered a team of specialists for engineering, manufacture, quality control, production management and technology development.Our company comprehensively complies with ISO9001:2001 management systems. We are supplying our motors to many famous worldwide companies of top brands with different applications in Europe, the Middle East, East Asia and South America.
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 32
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 34
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 36
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 38
Our Certification
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 40
Customer Praise
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 42
Packaging And Shipping
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 44
FAQ
12V 500Rpm 300mA Dc Geared Motor Can Match Encoder Planetary Gear Motors Encoder 46
1.Q: Are you trading company or manufacturer? A: We're manufacturer， We specialize in micro ac/dc motor and dc gear motor for more than 11 years. 2.Q: What is the payment term for a new customer? A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. 3. Q: what should I provide when I choose gearbox/speed reducer? A: 1) load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation 4.Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. 5.Q: What's your lead time? A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
