products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
DC MOTOR
Created with Pixso.

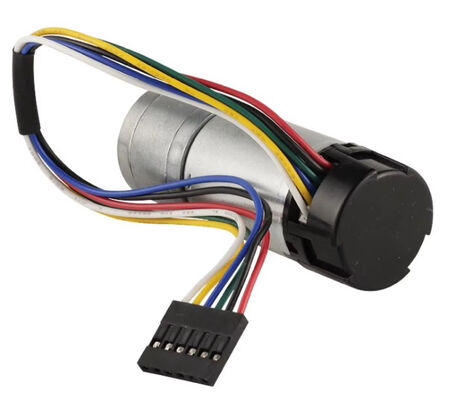

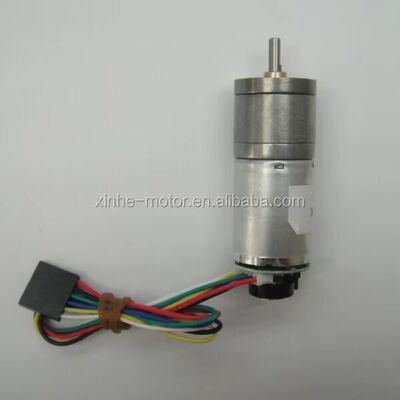

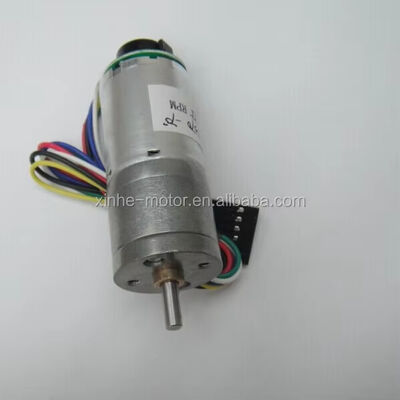

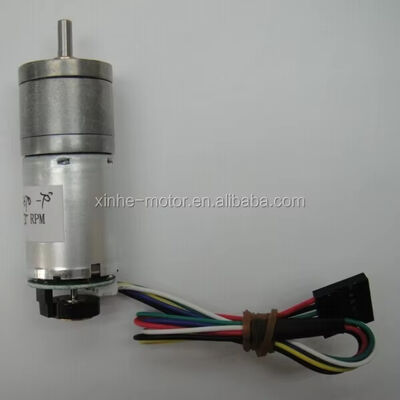

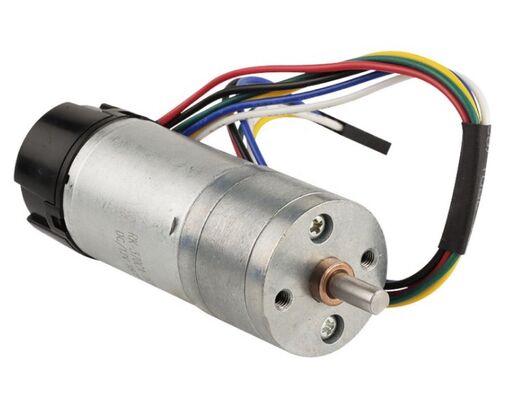

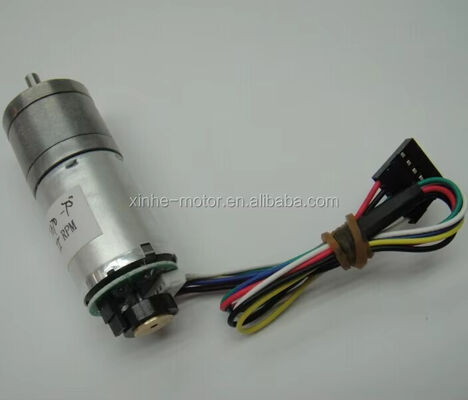

Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR

Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR

Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR

Brand Name: XINHE MOTOR
Model Number: XH-GM370-25D
MOQ: 10 pieces
Price: $9-10 / piece
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Continuous Current(A):
1A
Efficiency:
IE 2
Speed(RPM):
12~2200RPM
Commutation:
Brush
Construction:
Permanent Magnet
Frame:
25MM
Motor Mounting Type:
Panel Mount
Protect Feature:
Drip-proof
Rated Power:
10 W
Rated Voltage:
Dc 12V
Speed Rpm:
12~2200RPM
Torque:
Customized
Type:
Gear Motor
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance
Warranty:
3 Months ~ 1 Year
HIGH TORQUE:
CURRENT 6000mA
LOW TORQUE:
CURRENT 2200mA
SHAFT DIAMETER:
5.0mm
GEAR RATE:
4.4:1 TO 499:1
LONG LIFE:
500HOURS
GEAR MATERIAL:
Powder Metallurgy
ENCODER:
48CPR
BRACKET:
COPPER
NOISE:
LESS THAN 40dB
DIAMETER:
25mm
Product Description
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 0
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 2
Speed(RPM)
12~2200RPM
Continuous Current(A)
Customized
Efficiency
IE 2
Warranty
3months-1year
Place of Origin
China
Guangdong
Brand Name
XINHE MOTOR
Model Number
XH-GM370-25D
Speed Rpm
12~2200RPM
Use
BOAT, Car, Electric Bicycle, FAN, Home Appliance
Type
GEAR MOTOR
Torque
Customized
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Drip-proof
HIGH TORQUE
CURRENT 6000mA
LOW TORQUE
CURRENT 2200mA
SHAFT DIAMETER
5.0mm
GEAR RATE
4.4:1 TO 499:1
LONG LIFE
500HOURS
GEAR MATERIAL
powder metallurgy
ENCODER
48CPR
BRACKET
COPPER
NOISE
LESS THAN 40dB
DIAMETER
25mm
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 4
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 6
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 8
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 10
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 12
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 14
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 16
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 18
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 20
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 22
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 24
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 26
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 28
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 30
Customized High-Speed Reversible 25mm GM370 DC Gear Motor 48CPR Encoder 6V/12V Brush Commutation Permanent Magnet MOTOR 32
1.Q: Are you trading company or manufacturer? A: We're manufacturer， We specialize in micro ac/dc motor and dc gear motor for more than 11 years. 2.Q: What is the payment term for a new customer? A: We can draw up an Ali Assurance Order Online for our new
customer, which can pay online with Master Card, Visa, etc. 3. Q: what should I provide when I choose gearbox/speed reducer? A: 1)load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation 4.Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.
5.Q: What's your lead time? A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
