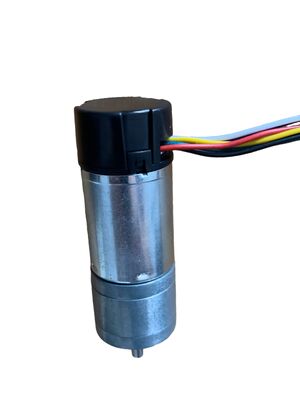

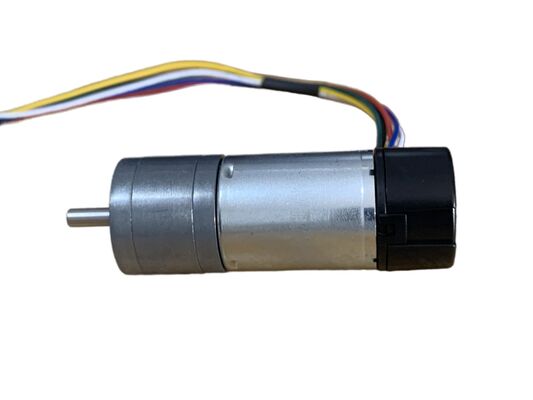

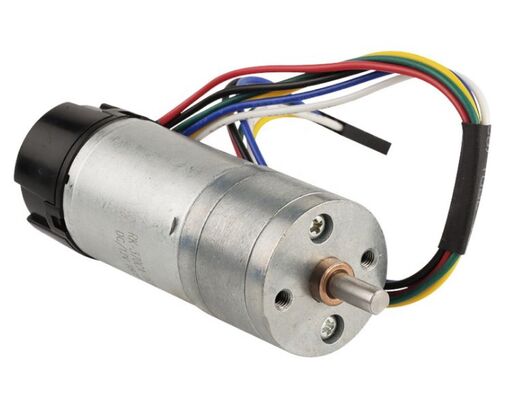

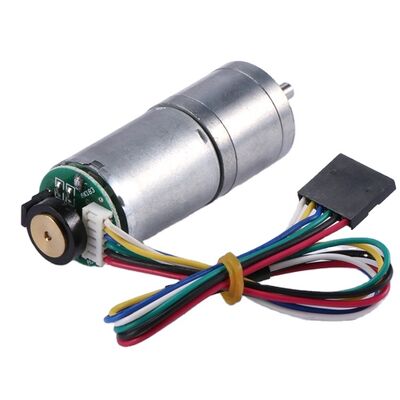

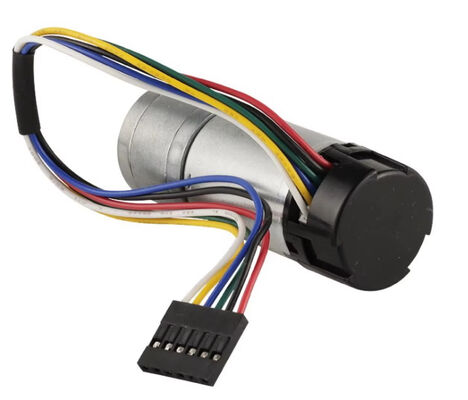

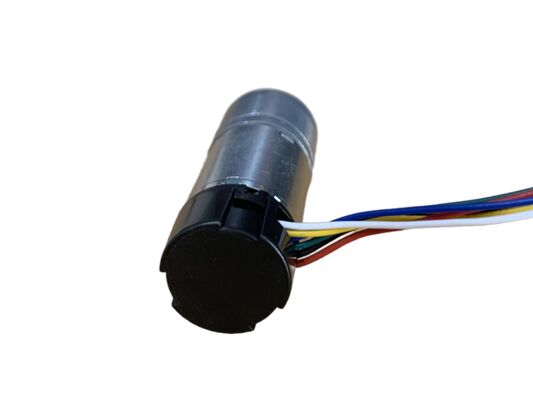

25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder

25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder

25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder

Brand Name: XINHE MOTOR
Model Number: XH-GM370-25D
MOQ: 10 pieces
Price: $8-9 / piece
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Continuous Current(A):
1A
Efficiency:
IE 2
Speed(RPM):
12~2200RPM
Commutation:
Brush
Construction:
Permanent Magnet
Frame:
25mm
Motor Mounting Type:
Panel Mount
Protect Feature:
Drip-proof
Rated Power:
10 W
Rated Voltage:
Dc 12V
Speed Rpm:
12~2200RPM
Torque:
Customized
Type:
Gear Motor
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance
Warranty:
3 Months ~ 1 Year
HIGH TORQUE:
CURRENT 6000mA
LOW TORQUE:
CURRENT 2200mA
SHAFT DIAMETER:
5.0mm
GEAR RATE:
4.4:1 TO 499:1
LONG LIFE:
500HOURS
GEAR MATERIAL:
Powder Metallurgy
ENCODER:
48CPR
BRACKET:
COPPER
NOISE:
LESS THAN 40dB
DIAMETER:
25mm
Product Description
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 0
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 2
Speed(RPM)
12~2200RPM
Continuous Current(A)
Customized
Efficiency
IE 2
Warranty
3months-1year
Place of Origin
China
Guangdong
Brand Name
XINHE MOTOR
Model Number
XH-GM370-25D
Speed Rpm
12~2200RPM
Use
BOAT, Car, Electric Bicycle, FAN, Home Appliance
Type
GEAR MOTOR
Torque
Customized
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Drip-proof
HIGH TORQUE
CURRENT 6000mA
LOW TORQUE
CURRENT 2200mA
SHAFT DIAMETER
5.0mm
GEAR RATE
4.4:1 TO 499:1
LONG LIFE
500HOURS
GEAR MATERIAL
powder metallurgy
ENCODER
48CPR
BRACKET
COPPER
NOISE
LESS THAN 40dB
DIAMETER
25mm
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 4
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 6
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 8
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 10
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 12
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 14
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 16
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 18
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 20
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 22
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 24
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 26
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 28
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 30
25D370 25mm 6v 12v DC Spur Gear Motor Best Quality for Robots Brush Commutation Permanent Magnet with 48CPR Encoder 32
1.Q: Are you trading company or manufacturer? A: We're manufacturer， We specialize in micro ac/dc motor and dc gear motor for more than 11 years. 2.Q: What is the payment term for a new customer? A: We can draw up an Ali Assurance Order Online for our new
customer, which can pay online with Master Card, Visa, etc. 3. Q: what should I provide when I choose gearbox/speed reducer? A: 1)load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation 4.Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.
5.Q: What's your lead time? A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
