| Brand Name: | XINHE MOTOR |
| Model Number: | XH-PGM36, PG16M030 |
| MOQ: | 100 pieces |
| Price: | $8-12 / piece |
Number of stages | 1 stages reduction | 2 stages reduction | 3 stages reduction | 4stages reduction | 5stages reduction |
Reduction ratio | 3.7 5.2 | 13.7 19.2 26.9 | 50.9 71.2 99.5 139 | 188 264 369 516 721 | 699 977 1367 1911 2672 3736 |
Gearbox length "L" mm | 26.4 | 32.6 | 38.9 | 45.3 | 52.5 |
Max. rated torque | 3.0Kgf cm | 6.0Kgf cm | 8.0Kgf cm | 12Kgf cm | 20Kgf cm |
Max. loss of torque | 9.0Kgf cm | 18Kgf cm | 24Kgf cm | 36Kgf cm | 60Kgf cm |
Efficiency | 90% | 81% | 73% | 65% | 59% |
Motor type | V | No load | Negative torque | Plugging torque | ||||||||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | |||||||
mA | r/min | mA | r/min | gf*cm | W | gf*cm | mA | |||||||
36ZY123000 | 12 | ≤140 | 3000 | ≤800 | 2200 | 180 | 4.0 | 750 | 3000 | |||||
36ZY124500 | 12 | ≤220 | 4500 | ≤1200 | 3300 | 250 | 8.5 | 950 | 4800 | |||||
36ZY126000 | 12 | ≤350 | 6000 | ≤2000 | 4500 | 350 | 15.0 | 1400 | 6000 | |||||
36ZY243000 | 24 | ≤70 | 3000 | ≤400 | 2200 | 180 | 4.0 | 750 | 1600 | |||||
36ZY244500 | 24 | ≤110 | 4500 | ≤600 | 3300 | 250 | 8.5 | 950 | 3000 | |||||
36ZY246000 | 24 | ≤180 | 6000 | ≤1000 | 4500 | 350 | 15.0 | 1400 | 4000 | |||||

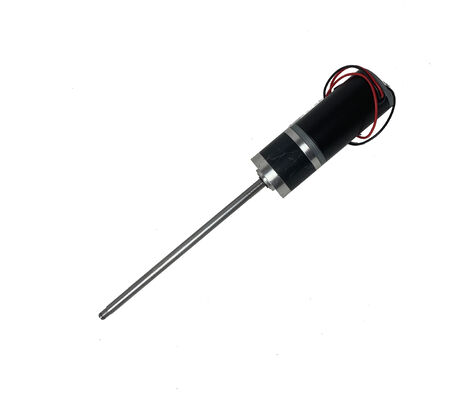

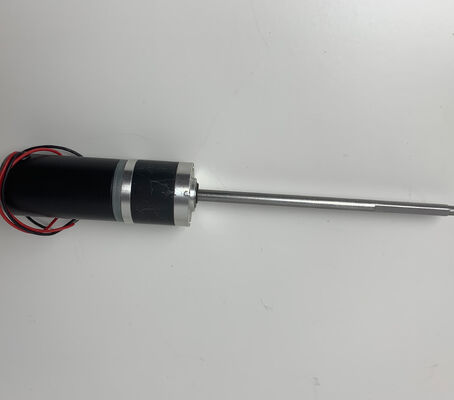

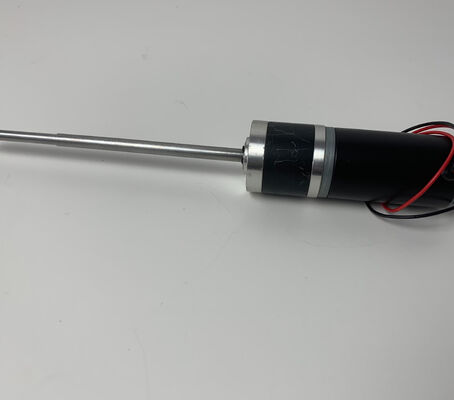

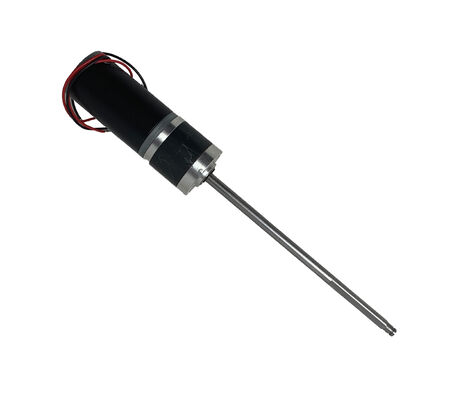

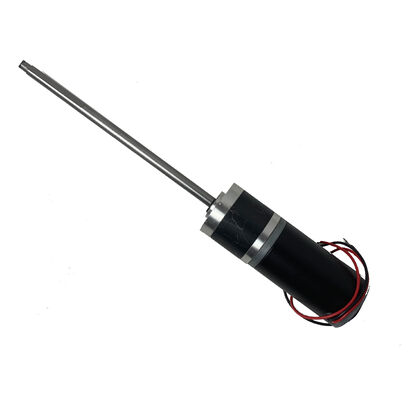

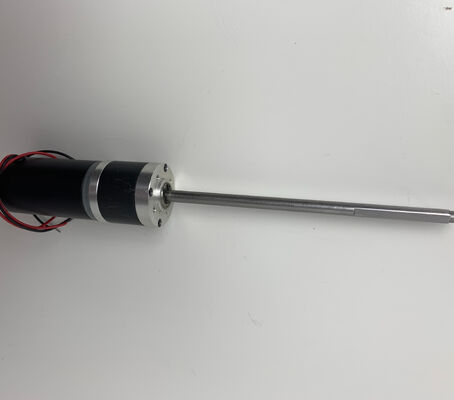

Product Name | 24v 200 Rpm 36mm Nema14 Micro Dc 24 Volt Mini Planetary Gearbox Dc Brush Gear Motor |
Gear material | Stainless steel |
Noise | Low Noise Level |
Certification | CE/RoHS |
Port Shipment | ShenZhen |
Ship Date | 5-7days |
Other Questions | Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions |
