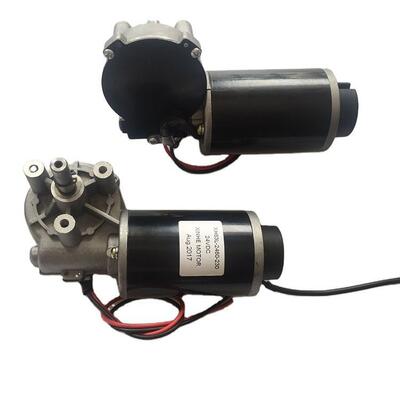

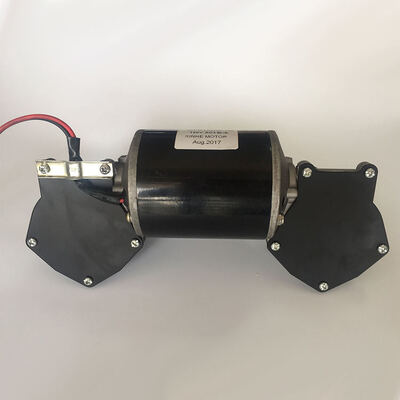

Permanent Magnet 12v 24v Worm Gear Motor High Torque With 48cpr Encoder

Brand Name:	XINHE MOTOR
Model Number:	XH-D63R/L
MOQ:	100 pieces
Price:	Other 20.0-Other 25.0 / piece

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

RoHS

Continuous Current(A):

2~5A

Efficiency:

IE 1

Speed(RPM):

10~500RPM

Commutation:

Brush

Construction:

Permanent Magnet

Protect Feature:

Waterproof

Torque:

50N.m MAX.

Type:

Gear Motor

Usage:

Boat, Car, Electric Bicycle, Home Appliance

Warranty:

3 Months ~ 1 Year

Gear Material:

Bronze And POM

Gear Rate:

10:1~300:1

Max. Output Power:

600W

Product Name:

12v Worm Gear Motor High Torque

Gear Box Direction:

LEFE And RIGHT

Long Life Time:

2000hours

With Encoder:

Without Or With 48CPR Encoder

Noise:

50dB

Packing:

Single Small Box For Each Motor

Product Description

Product Parameter

Motor Type	Voltage	Power	Speed	Current	speed	current	Torque	Gear ratio	Case length
	V	W	RPM	A	RPM	A	N.M	Gear ratio	Case length
XH63L/R-1230-130	12	30	130±10	≤1.2	110±10	≤3.5	≥3.3	1:20	85
XH63L/R-1230-150	12	03	150±10	≤1.2	150±10	≤4.5	≥4.5	1:20	85
XH63L/R-2445-180	24	45	180±10	≤1.5	150±10	≤6.5	≥4.5	1:20	85
XH63L/R-2445-150	24	45	150±10	≤1.2	130±10	≤4.5	≥3.3	1:20	85
XH63L/R-4245-180	42	45	180±10	≤1.2	150±10	≤4.5	≥4.5	1:20	85
XH63L/R-2445-210	24	45	210±10	≤1.2	180±10	≤6.5	≥5.0	1:20	85
XH63L/R-4865-150	48	65	150±10	≤1.2	130±10	≤3.5	≥5.0	1:20	85
XH63L/R-2480-65	24	80	65±5	≤1.4	60±10	≤4.5	≥6.0	1:60	85
XH63L/R-2480-75	24	80	75±5	≤1.5	68±10	≤4.5	≥6.0	1:60	85
XH63L/R-1280-80	12	80	80±5	≤1.8	68±10	≤9.0	≥6.0	1:60	85
XH63W-22080-45	220	80	45±5	≤0.2	35±5	≤0.6	≥8.0	1:60	85
XH63L/R-1245-170	12	45	170±10	≤1.4	150±10	≤10	≥3.5	1:24	85
XH63L/R-2430-300	24	30	300±15	≤1.4	250±10	≤4.5	≥2.5	1:15	85
XH63L/R-2430-30	24	30	30±3	≤1.0	235±3	≤3.5	≥4.0	1:75	85

Motor Type	Voltage	Power	Speed	Current	speed	current	Torque	Gear ratio	Case length
	V	W	RPM	A	RPM	A	N.M	Gear ratio	Case length
XH76L/R-2460-30	24	60	30±3	≤1.2	26±3	≤3.5	≥4.5	1:75	77
XH76L/R-2460-30	42	60	30±3	≤1.2	26±3	≤3.0	≥5.0	1:75	77
XH76L/R-2460-50	24	60	50±3	≤1.2	45±3	≤3.5	≥4.5	1:60	77
XH76L/R-4260-65	42	60	65±5	≤1.2	60±5	≤3.5	≥5.0	1:60	77
XH76L/R-4860-75	48	60	75±5	≤1.2	70±5	≤3.5	≥5.2	1:60	77
XH76L/R-1280-50	12	80	50±5	≤1.2	42±5	≤4.5	≥5.0	1:60	85
XH76L/R-2480-65	24	80	65±5	≤1.4	60±5	≤4.5	≥5.2	1:60	85
XH76L/R-1245-150	12	45	150±10	≤1.4	130±10	≤3.5	≥3.3	1:20	77
XH76L/R-2465-180	24	65	180±10	≤1.4	150±10	≤4.5	≥4.5	1:20	85
XH76L/R-2495-180	24	95	180±10	≤1.4	150±10	≤4.5	≥5.0	1:20	97
XH76L/R-24120-60	24	120	60±5	≤1.4	50±5	≤4.5	≥5.0	1:60	97
XH76L/R-24120-45	24	120	45±5	≤1.2	32±5	≤5.5	≥12	1:75	97
XH76L/R-12100-50	12	100	55±5	≤1.8	30±5	≤22	≥20	1:60	97
XH76CFX-24120-20	24	120	20±2	≤1.5	16±2	≤6.0	≥20	1:187	97

Product Name	Permanent Magnet 12v 24v Worm Gear Motor High Torque With 48cpr Encoder
Gear material	Stainless steel
Noise	Low Noise Level
Certification	CE/RoHS
Port Shipment	ShenZhen
Ship Date	5-7days
Other Questions	Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions

Products Show

Related Products

Company Profile

Our company is located in the center of Shenzhen City. We are a specialized factory that produces ac/dc motor, gear motor, brushless motor, vacuum cleaner motor, stepper motor. Our products are applied to various kinds of devices, like kitchen appliances, air flow products, air conditioners, water heaters, water & induction pumps, power tools and electrical toys as well as household appliances.In line with the management idea of "humanist, the good faith is supreme" and the quality consciousness of "strives for perfection", we have gathered a team of specialists for engineering, manufacture, quality control, production management and technology development.Our company comprehensively complies with ISO9001:2001 management systems. We are supplying our motors to many famous worldwide companies of top brands with different applications in Europe, the Middle East, East Asia and South America.

Our Certification

Customer Praise

Packaging And Shipping

FAQ

1.Q: Are you trading company or manufacturer? A: We're manufacturerï¼Œ We specialize in micro ac/dc motor and dc gear motor for more than 11 years. 2.Q: What is the payment term for a new customer? A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. 3. Q: what should I provide when I choose gearbox/speed reducer? A: 1) load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation 4.Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. 5.Q: What's your lead time? A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
