products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
DC MOTOR
Created with Pixso.

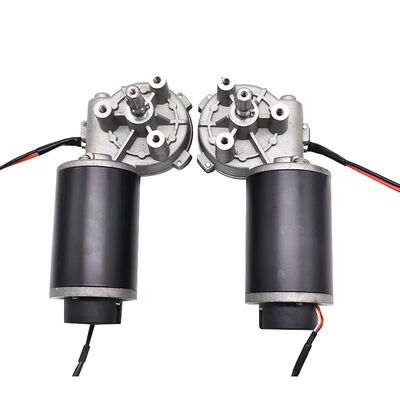

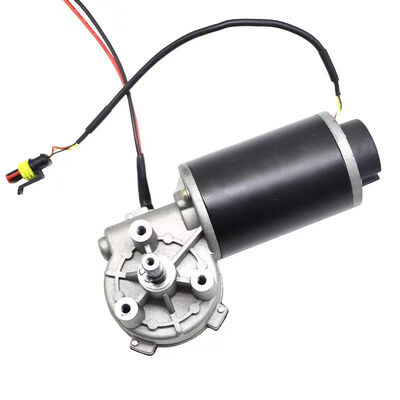

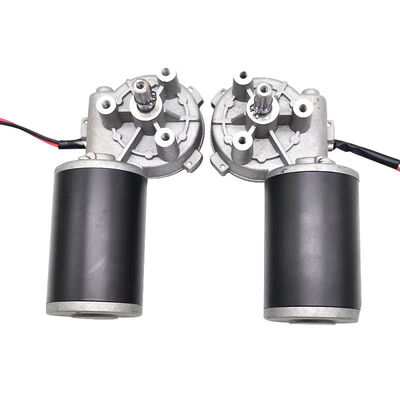

Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing

Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing

Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing

Brand Name: XINHE MOTOR
MOQ: 100 pieces
Price: $25-28 / piece
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
ROHS
Gearing Arrangement:
Worm
Input Speed:
45RPM
Output Speed:
45RPM
Output Torque:
4.5N.M
Applicable Industries:
Manufacturing Plant
Customized Support:
OEM
Gear Type:
Worm
Maximum Input Horsepower:
80W
Mounting Orientation:
Flange Mounted
Output Shaft Type:
Flanged Shaft
Ratio:
60:1
Warranty:
1 YEAR
Weight (KG):
2.5
Keywords:
Mini Worm Gear Reducer
Diameter:
76mm
Torque:
Customized
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance
Encoder:
48CPR
Voltage(V):
12VDC To 220VDC
PERFORMANCE:
High And Low
Protect Feature:
Drip-proof
Speed(RPM):
Customized
Product Description
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 0
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 2
Input Speed
As you need
Output Speed
As you need
Applicable Industries
Manufacturing Plant
Weight (KG)
2.5KG
Place of Origin
China
Guangdong
Output Torque
As you need
Brand Name
xinhe
keywords
mini worm gear reducer
diameter
76mm
Certification
ROHS
Torque
Customized
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Encoder
48CPR
Voltage(V)
12VDC to 220VDC
PERFORMANCE
High and low
Protect Feature
Drip-proof
Speed(RPM)
Customized
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 4
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 6
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 8
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 10
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 12
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 14
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 16
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 18
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 20
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 22
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 24
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 26
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 28
Brushed DC Motor High Torque 76mm Worm Gear 60:1 Ratio 4.5N.M Output Flange Mounted Speed Reducers 45rpm 24VDC for Manufacturing 30
1.Q: Are you trading company or manufacturer? A: We're manufacturer， We specialize in micro ac/dc motor and dc gear motor for more than 11 years. 2.Q: What is the payment term for a new customer? A: We can draw up an Ali Assurance Order Online for our new
customer, which can pay online with Master Card, Visa, etc. 3. Q: what should I provide when I choose gearbox/speed reducer? A: 1)load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation 4.Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.
5.Q: What's your lead time? A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
