76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices

76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices

Brand Name: XINHE MOTOR
Model Number: XH-D76
MOQ: 100 pieces
Price: $25-28 / piece
Payment Terms: T/T
Supply Ability: 5000PCS/MONTH
Detail Information
Place of Origin:
Guangdong, China
Certification:
ROHS
Applicable Industries:
Manufacturing Plant
Maximum Input Horsepower:
80W
Mounting Orientation:
Flange Mounted
Output Shaft Type:
Flanged Shaft
Ratio:
60:1
Warranty:
1 YEAR
Weight (KG):
2.5
Diameter:
76mm
Protect Feature:
Drip-proof
Packaging Details:
CARTON PACKING
Supply Ability:
5000PCS/MONTH
Product Description

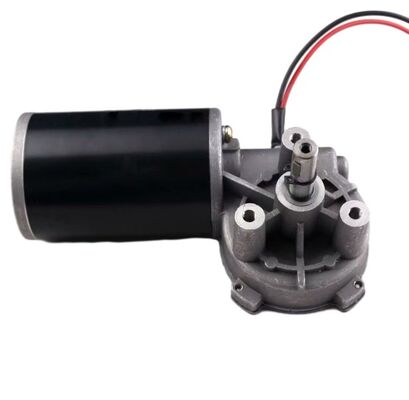

76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 0

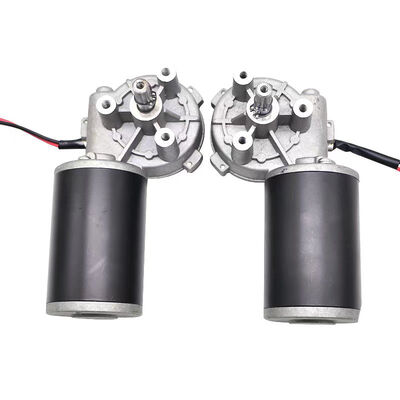

76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 1
Product Specifications
Motor Type
Voltage
Power
Speed
Current
speed
current
Torque
Gear ratio
Case length

V
W
RPM
A
RPM
A
N.M
XH76L/R-2460-30
24
60
30±3
≤1.2
26±3
≤3.5
≥4.5
1:75
77
XH76L/R-2460-30
42
60
30±3
≤1.2
26±3
≤3.0
≥5.0
1:75
77
XH76L/R-2460-50
24
60
50±3
≤1.2
45±3
≤3.5
≥4.5
1:60
77
XH76L/R-4260-65
42
60
65±5
≤1.2
60±5
≤3.5
≥5.0
1:60
77
XH76L/R-4860-75
48
60
75±5
≤1.2
70±5
≤3.5
≥5.2
1:60
77
XH76L/R-1280-50
12
80
50±5
≤1.2
42±5
≤4.5
≥5.0
1:60
85
XH76L/R-2480-65
24
80
65±5
≤1.4
60±5
≤4.5
≥5.2
1:60
85
XH76L/R-1245-150
12
45
150±10
≤1.4
130±10
≤3.5
≥3.3
1:20
77
XH76L/R-2465-180
24
65
180±10
≤1.4
150±10
≤4.5
≥4.5
1:20
85
XH76L/R-2495-180
24
95
180±10
≤1.4
150±10
≤4.5
≥5.0
1:20
97
XH76L/R-24120-60
24
120
60±5
≤1.4
50±5
≤4.5
≥5.0
1:60
97
XH76L/R-24120-45
24
120
45±5
≤1.2
32±5
≤5.5
≥12
1:75
97
XH76L/R-12100-50
12
100
55±5
≤1.8
30±5
≤22
≥20
1:60
97
XH76CFX-24120-20
24
120
20±2
≤1.5
16±2
≤6.0
≥20
1:187
97

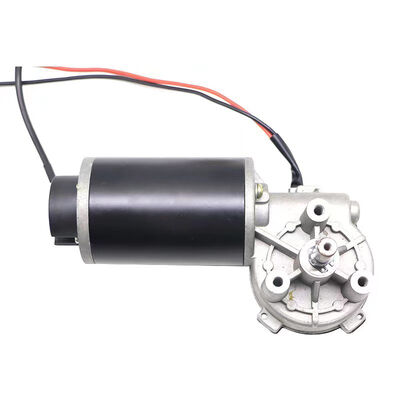

76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 2

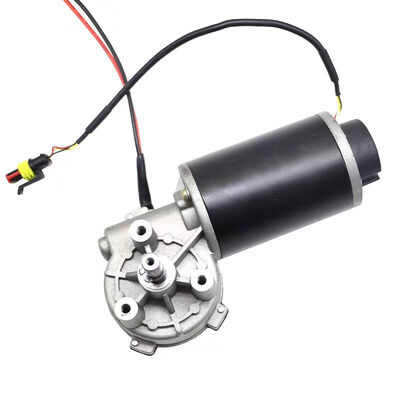

76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 3

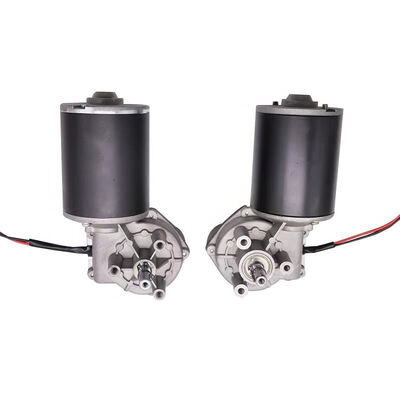

76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 4

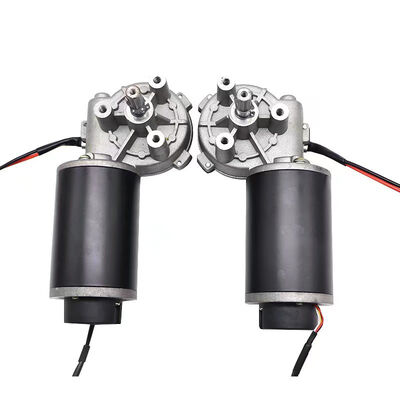

76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 5
76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 6
76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 7
76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 8
76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 9
76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 10
76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 11
76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 12
76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 13
76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 14

76mm Worm Gear Brushed DC Motor High Torque 24VDC For Packaging Machines And Material Handling Devices 15
Frequently Asked Questions

1.Q: Are you trading company or manufacturer?

A: We're manufacturer, We specialize in micro ac/dc motor and dc gear motor for more than 11 years.

2.Q: What is the payment term for a new customer?

A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc.

3. Q: what should I provide when I choose gearbox/speed reducer?

A: 1)load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation

4.Q: Do you have a customized service for your standard motors?

A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.

5.Q: What's your lead time?

A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
