| Brand Name: | XINHE |
| Model Number: | XH63R |
| MOQ: | 100 pieces |
| Price: | $23 / piece |
Motor Type | Voltage | Power | Speed | Current | speed | current | Torque | Gear ratio | Case length |
V | W | RPM | A | RPM | A | N.M | |||
XH63L/R-1230-130 | 12 | 30 | 130±10 | ≤1.2 | 110±10 | ≤3.5 | ≥3.3 | 1:20 | 85 |
XH63L/R-1230-150 | 12 | 03 | 150±10 | ≤1.2 | 150±10 | ≤4.5 | ≥4.5 | 1:20 | 85 |
XH63L/R-2445-180 | 24 | 45 | 180±10 | ≤1.5 | 150±10 | ≤6.5 | ≥4.5 | 1:20 | 85 |
XH63L/R-2445-150 | 24 | 45 | 150±10 | ≤1.2 | 130±10 | ≤4.5 | ≥3.3 | 1:20 | 85 |
XH63L/R-4245-180 | 42 | 45 | 180±10 | ≤1.2 | 150±10 | ≤4.5 | ≥4.5 | 1:20 | 85 |
XH63L/R-2445-210 | 24 | 45 | 210±10 | ≤1.2 | 180±10 | ≤6.5 | ≥5.0 | 1:20 | 85 |
XH63L/R-4865-150 | 48 | 65 | 150±10 | ≤1.2 | 130±10 | ≤3.5 | ≥5.0 | 1:20 | 85 |
XH63L/R-2480-65 | 24 | 80 | 65±5 | ≤1.4 | 60±10 | ≤4.5 | ≥6.0 | 1:60 | 85 |
XH63L/R-2480-75 | 24 | 80 | 75±5 | ≤1.5 | 68±10 | ≤4.5 | ≥6.0 | 1:60 | 85 |
XH63L/R-1280-80 | 12 | 80 | 80±5 | ≤1.8 | 68±10 | ≤9.0 | ≥6.0 | 1:60 | 85 |
XH63W-22080-45 | 220 | 80 | 45±5 | ≤0.2 | 35±5 | ≤0.6 | ≥8.0 | 1:60 | 85 |
XH63L/R-1245-170 | 12 | 45 | 170±10 | ≤1.4 | 150±10 | ≤10 | ≥3.5 | 1:24 | 85 |
XH63L/R-2430-300 | 24 | 30 | 300±15 | ≤1.4 | 250±10 | ≤4.5 | ≥2.5 | 1:15 | 85 |
XH63L/R-2430-30 | 24 | 30 | 30±3 | ≤1.0 | 235±3 | ≤3.5 | ≥4.0 | 1:75 | 85 |
Motor Type | Voltage | Power | Speed | Current | speed | current | Torque | Gear ratio | Case length |
V | W | RPM | A | RPM | A | N.M | |||
XH76L/R-2460-30 | 24 | 60 | 30±3 | ≤1.2 | 26±3 | ≤3.5 | ≥4.5 | 1:75 | 77 |
XH76L/R-2460-30 | 42 | 60 | 30±3 | ≤1.2 | 26±3 | ≤3.0 | ≥5.0 | 1:75 | 77 |
XH76L/R-2460-50 | 24 | 60 | 50±3 | ≤1.2 | 45±3 | ≤3.5 | ≥4.5 | 1:60 | 77 |
XH76L/R-4260-65 | 42 | 60 | 65±5 | ≤1.2 | 60±5 | ≤3.5 | ≥5.0 | 1:60 | 77 |
XH76L/R-4860-75 | 48 | 60 | 75±5 | ≤1.2 | 70±5 | ≤3.5 | ≥5.2 | 1:60 | 77 |
XH76L/R-1280-50 | 12 | 80 | 50±5 | ≤1.2 | 42±5 | ≤4.5 | ≥5.0 | 1:60 | 85 |
XH76L/R-2480-65 | 24 | 80 | 65±5 | ≤1.4 | 60±5 | ≤4.5 | ≥5.2 | 1:60 | 85 |
XH76L/R-1245-150 | 12 | 45 | 150±10 | ≤1.4 | 130±10 | ≤3.5 | ≥3.3 | 1:20 | 77 |
XH76L/R-2465-180 | 24 | 65 | 180±10 | ≤1.4 | 150±10 | ≤4.5 | ≥4.5 | 1:20 | 85 |
XH76L/R-2495-180 | 24 | 95 | 180±10 | ≤1.4 | 150±10 | ≤4.5 | ≥5.0 | 1:20 | 97 |
XH76L/R-24120-60 | 24 | 120 | 60±5 | ≤1.4 | 50±5 | ≤4.5 | ≥5.0 | 1:60 | 97 |
XH76L/R-24120-45 | 24 | 120 | 45±5 | ≤1.2 | 32±5 | ≤5.5 | ≥12 | 1:75 | 97 |
XH76L/R-12100-50 | 12 | 100 | 55±5 | ≤1.8 | 30±5 | ≤22 | ≥20 | 1:60 | 97 |
XH76CFX-24120-20 | 24 | 120 | 20±2 | ≤1.5 | 16±2 | ≤6.0 | ≥20 | 1:187 | 97 |

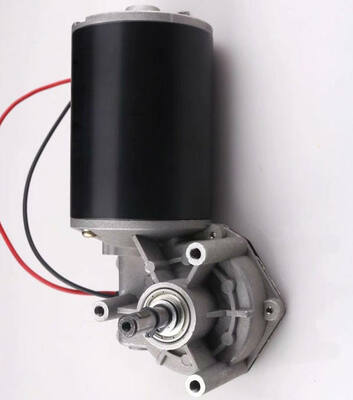

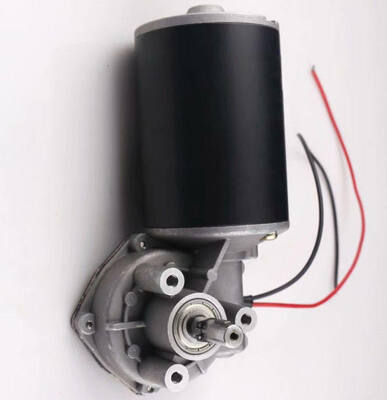

Product Name | Brass Gears In The Worm Reducer 12v 120rpm Electric Dc Worm Gear Motor |
Gear material | Stainless steel |
Noise | Low Noise Level |
Certification | CE/RoHS |
Port Shipment | ShenZhen |
Ship Date | 5-7days |
Other Questions | Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions |
