products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
DC MOTOR
Created with Pixso.

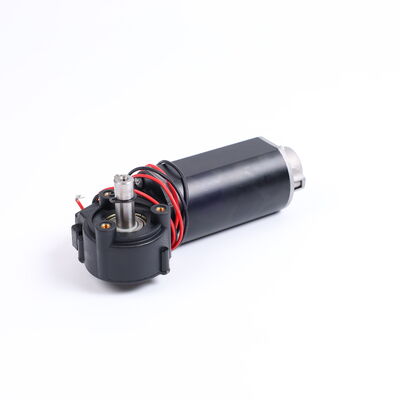

High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M

High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M

High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M

Brand Name: XINHE MOTOR
Model Number: D45
MOQ: 10 pieces
Price: $15-19 / piece
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Continuous Current(A):
3A
Efficiency:
IE 2
Speed(RPM):
10~400RPM, 10~400RPM
Commutation:
Brush
Construction:
Permanent Magnet
Frame:
45MM
IP Rating:
IP55
Motor Mounting Type:
Foot Mount
Protect Feature:
Explosion-proof
Rated Power:
30W
Speed Rpm:
125RPM
Torque:
3N.M, 1~5N.M
Type:
Gear Motor
Usage:
Boat, Car, Electric Bicycle, Home Appliance, Cosmetic Instrument, Smart Home, Electric Table And Chair Motor, Home Appliance
Warranty:
3 Months ~ 1 Year
Diameter:
45mm
Encoder:
48CPR
Voltage:
24V
Shape:
Worm Gear
Material:
Stainless Steel
Noise:
45dB
Keywords:
DC Gear Motor Encoder
Product Description
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 0
Product Parameter
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 2
Model
Voltage
No load speed
Noload current
Stall torque
 Gear ratio

Unit: VDC
Unit: rpm
Unit: mA
Unit: kg.cm

45D90-8
24V
1030rpm
280mA
20 kg.cm
8.7:1
45D90-26
24V
340 rpm
280mA
55 kg.cm
26.2:1
45D90-78
24V
110 rpm
280mA
70 kg.cm
78.5:1
45D90-183
24V
49 rpm
280mA
70 kg.cm
183:1
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 4
Product Name
45D High quality Dc Geared Motor Worm Gear Motor Gear Motor 125rpm
Gear material
Stainless steel
Noise
Low Noise Level
Certification
CE/RoHS
Port Shipment
ShenZhen
Ship Date
5-7days
Other Questions
Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions
Products Show
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 6
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 8
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 10
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 12
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 14
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 16
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 18
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 20
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 22
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 24
Related Products
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 26
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 28
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 30
Company Profile
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 32
Our company is located in the center of Shenzhen City. We are a specialized factory that produces ac/dc motor, gear motor, brushless motor, vacuum cleaner motor, stepper motor. Our products are applied to various kinds of devices, like kitchen appliances, air flow products, air conditioners, water heaters, water & induction pumps, power tools and electrical toys as well as household appliances.In line with the management idea of "humanist, the good faith is supreme" and the quality consciousness of "strives for perfection", we have gathered a team of specialists for engineering, manufacture, quality control, production management and technology development.Our company comprehensively complies with ISO9001:2001 management systems. We are supplying our motors to many famous worldwide companies of top brands with different applications in Europe, the Middle East, East Asia and South America.
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 34
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 36
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 38
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 40
Our Certification
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 42
Customer Praise
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 44
Packaging And Shipping
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 46
FAQ
High Quality 45D DC Geared Worm Gear Motor 125rpm 24V Low Noise Brush Commutation Explosion-Proof Low RPM Gear Box 30W 3N.M 48
1.Q: Are you trading company or manufacturer? A: We're manufacturer， We specialize in micro ac/dc motor and dc gear motor for more than 11 years. 2.Q: What is the payment term for a new customer? A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. 3. Q: what should I provide when I choose gearbox/speed reducer? A: 1) load condition 2) speed of rotation or speed ratio 3) work circumstance 4) space of installation 4.Q: Do you have a customized service for your standard motors? A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. 5.Q: What's your lead time? A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products.
