| Brand Name: | XINHE MOTOR |
| Model Number: | D59 |
| MOQ: | 1 piece |
| Price: | $8-30 / piece |
(Standard Operating Conditions) | ||||||
NO. | Item | Specification | Test Method | |||
1-1 | Rated voltage | 12/24/36/110/220 vDC | Multimeter | |||
1-2 | Rotation | cw/CCw | Handle | |||
1-3 | Motor Position | Allpasition | Handle | |||
1-4 | Temperature | 10~30℃ | Temperature | |||
1-5 | Humidity | 30～95% | Hygroscope | |||
(Performance of Motors) | ||||||
NO. | Item | Specification | Test Method | |||
2-1 | No-load Speed | 1500~5000RPM | Flash Speed Indicator | |||
2-2 | No-load Current | 2.0A max | DC Power Supply | |||
2-3 | Insulation voltage | 50OVAC/0.5mA/1s | Hi-pot Tester | |||
2-4 | insulation resistance | COOL≥20M Q/HOT≥20M | lnsulation Resistance Tester | |||
(The Dimension) | ||||||
NO. | Item | Specification | Test Method | |||
3-1 | The Dimension | custom mm | Vernier Calipers | |||
3-2 | Shaft End Play | 0.05-0.3mm | Micrometer | |||
3-3 | Threaded hole | 2-M5 | Vernier Calipers | |||
3-4 | Out Line Mounting Dimention | Refert The Outline Drawing | Micrometer And VernierCalipers | |||

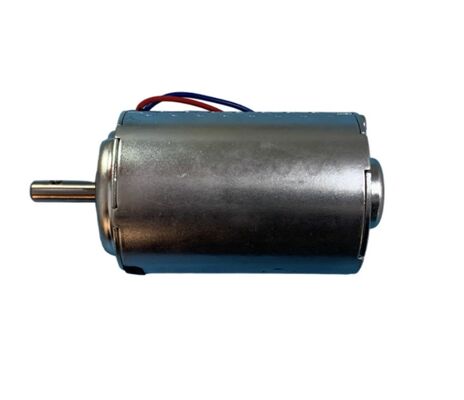

Product Name | 59mm High Torque 2800rpm 12/24v Dc Electric Boat Engine Micro Motor |
Gear material | Stainless steel |
Noise | Low Noise Level |
Certification | CE/RoHS |
Port Shipment | ShenZhen |
Ship Date | 5-7days |
Other Questions | Welcome To Communicate With Us, If You Have Any Doubts, You Can Communicate With Us, We Will Answer Your Questions |
