80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications

80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications

Brand Name: XINHE MOTOR
Model Number: XH-BL80
MOQ: 2 pieces
Price: $200-500 / piece
Payment Terms: T/T
Supply Ability: 3000pcs/month
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE ROHS
Continuous Current:
50A MAX
Packaging Details:
Carton packaging
Supply Ability:
3000pcs/month
Product Description
48VDC Brushless BLDC Motor 1KW 1200rpm～3000rpm with Hall Sensor

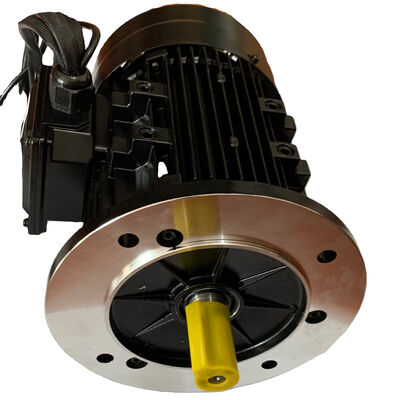

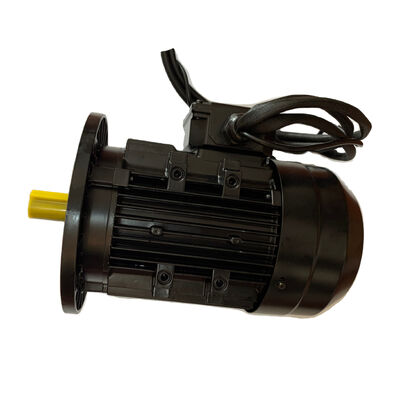

80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 0 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 1
Product Overview

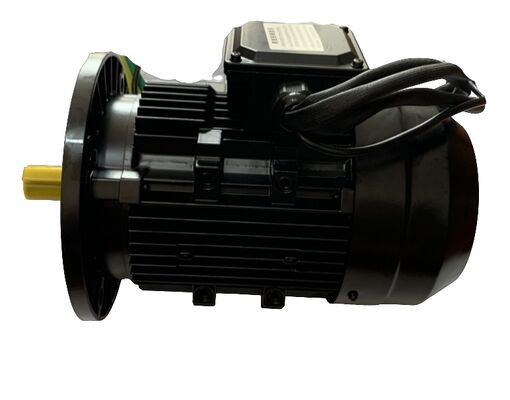

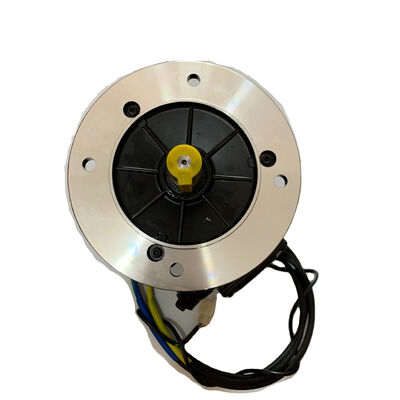

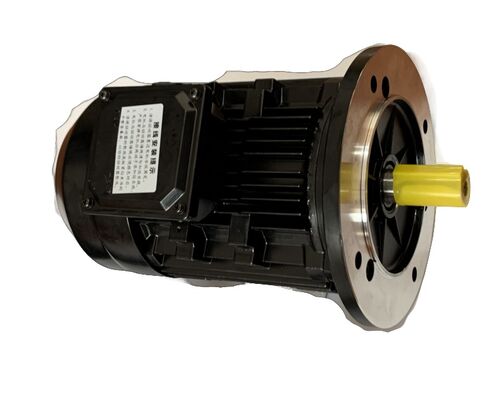

80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 2 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 3 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 4
Technical Specifications

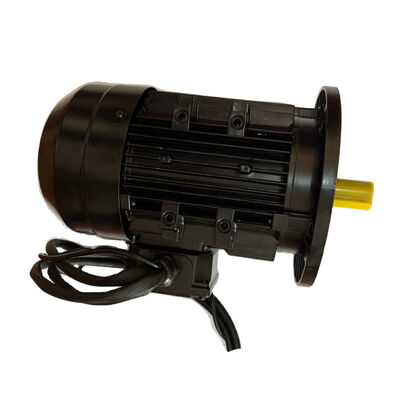

80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 5 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 6 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 7 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 8
Brushless DC Motor Specifications
Installation Options:
B3 Horizontal installation: Horizontal mounting with mounting feet
B5 Vertical flange installation: Vertical mounting without mounting feet
Motor installation fixed mode, vertical horizontal installation B35. The installation mode of B14 and B34 is optional.
BLDC MOTOR Model Voltage Rated Power (KW) Rated Speed (RPM) Rated Current (A) Rated Torque (N.m) Weight (kg) Cooling
BL80B3/5-24V0.55-1200240.551200234.46.5Fan cooling
BL80B3/5-24V0.75-1500240.751500324.86.5
BL80B3/5-24V1.1-1500241.11500476.98.0
BL80B3/5-24V1.2-2500241.22500524.66.5
BL80B3/5-24V1.5-2000241.52000657.18.0
BL80B3/5-24V1.5-3000241.53000654.86.5
BL80B3/5-36V0.75-1500360.751500214.86.5
BL80B3/5-36V1.1-1500361.11500316.98.0
BL80B3/5-48V0.75-1500480.751500164.86.5
BL80B3/5-48V1.1-1500481.11500236.98.0
BL80B3/5-48V1.2-3000481.23000263.86.5
BL80B3/5-48V2.2-3000482.23000476.98.0
Key Features
  • The rotor is of rare-earth permanent magnet structure, featuring large starting torque and low starting current
  • Small in size, light in weight, and has high efficiency
  • Excellent speed regulation performance with wide efficient operating range
  • Permanent magnet structure has no carbon brushes, simple structure, requires no maintenance, and has good reliability
  • Can be frequently started and stopped, and can operate continuously under the rated load
  • Same size as the Y2 series AC asynchronous motor, making it convenient for replacement and installation
Performance Characteristics
Overload Capacity:
The motor can handle a short-term power overload of 1.5 times, a torque overload of 3 times, and can operate continuously under the rated load.
Operating Environment:
Altitude below 4000 meters, air humidity ≤ 90% RH, environmental temperature ranging from -25℃ to +60℃.
Technical Drawings
80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 9 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 10 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 11 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 12 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 13 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 14 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 15 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 16 80mm 48VDC Brushless DC Motor 1KW 1200rpm～3000rpm with Hall Sensor for Industrial Applications 17
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We're manufacturer, We specialize in micro ac/dc motor and dc gear motor for more than 16 years.
Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc.
Q: What should I provide when I choose gearbox/speed reducer?
A: 1) Load condition 2) Speed of rotation or speed ratio 3) Work circumstance 4) Space of installation
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30 days, a bit longer for customized products.
