| Brand Name: | XINHE MOTOR |

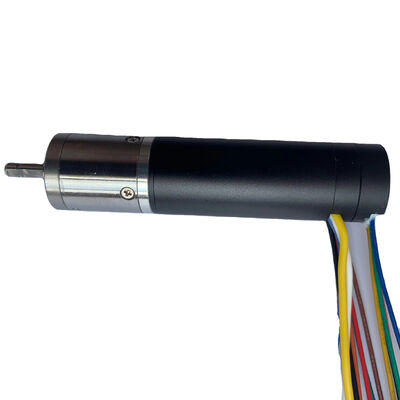

| Model Number: | PGM16-BL1635 |
| MOQ: | 1pieces |
| Price: | $35-80 / piece |
| Payment Terms: | T/T |
| Supply Ability: | 3000pcs/month |
| Parameter Name | Unit | Data 1 | Data 2 |
|---|---|---|---|
| Nominal Power | W | 1 | 10 |
| Rated Voltage | Volt | 6 | 12 |
| Resistance ±10% | Ohm | 6.8 | 10.5 |
| No-load Speed ±10% | rpm | 10000 | 13000 |
| No-load Current ≤125% | mA | 60 | 50 |
| Speed Constant | rpm/V | 1667 | 1083 |
| Torque Constant | mNm/A | 5.34 | 8.43 |
| Stall Current | mA | 2121 | 1349 |
| Stall Torque | mNm | 882 | 1143 |
| Max. Efficiency | % | 55 | 63 |
| Inductance | mH | 4.71 | 9.64 |
| Mechanical Time Constant | ms | 0.16 | 0.24 |
| Rotor Inertia | gcm² | 10.69 | 6.80 |
| Parameter | Unit | Data 1 | Data 2 |
|---|---|---|---|
| Current | mA | 0.48 | 0.48 |
| Torque | mNm | 230 | 420 |
| Speed | rpm | 1.23 | 3.54 |
| Output | W | 7393 | 8223 |
